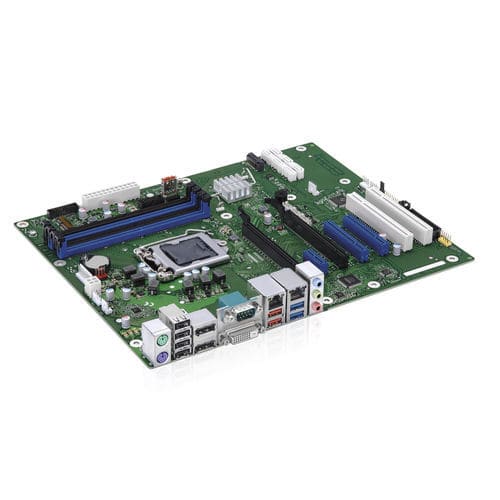

ATX motherboard D3646-S ATX

Intel® Celeron®Intel® Core i3Intel® Core i5

Product information
Besides assured extended availability for a minimum of five years, the industrial motherboard D3646-S ATX supports Intel® Xeon® E-21xx/E-22xx, Intel® Core™ i9/i7/i5/i3 (8th/9th Gen) and Intel® Pentium®/Celeron® processors. It offers Intel® AMT 12.0 and vPro manageability and is suited to workstations, entry-level servers, medical systems and other industrial applications with high-performance requirements.

Product highlights

• cTDP – easy and flexible reduction of CPU TDP
• Dual Gigabit LAN, 4× COM, GPIO and 2× PCI
• Onboard M.2 SSD and M.2 WLAN slots
• Hardware Watchdog (3-level)
• USB 3.1 Gen2 support

Benefits

• Designed for long lifecycle and extended availability (min. 5 years)
• Manageability with Intel® AMT 12.0 / vPro
• Comprehensive I/O and expansion options for industrial use
• Reliable operation features such as HW Watchdog and ECC memory support
• Reduced total cost of ownership through lifecycle management

Technical data
Processor: Intel® Xeon® E-21xx/E-22xx series; Intel® 8th & 9th Gen Core™ i9/i7/i5/i3 series; Intel® Pentium® / Celeron® series
Chipset: Intel® C246
Main memory: 4× DDR4 DIMM, up to 64 GB, ECC support; supported speeds 2666/2400/2133 MT/s
Graphics controller: Intel® UHD Graphics (processor dependent), DirectX 12
Display outputs: 2× DisplayPort 1.2, 1× DVI-D

Technical specifications

• Model: D3646-S ATX
• Processor support: Intel® Xeon® E-21xx/E-22xx; Intel® Core™ i9/i7/i5/i3 (8th/9th Gen); Intel® Pentium®/Celeron®
• Chipset: Intel® C246
• Memory: 4× DDR4 up to 64 GB, ECC supported (2666/2400/2133)
• Integrated graphics: Intel® UHD Graphics (processor dependent), DirectX 12
• Video outputs: 2× DisplayPort 1.2, 1× DVI-D
• Expansion & I/O: Dual Gigabit LAN (Intel® i219LM & i210AT), 4× COM, 8-bit GPIO, 2× PCI, multiple PCIe lanes
• Storage: M.2 Key-M (2280) for SSD, 6× SATA III (6 Gbit/s) with NCQ/AHCI/RAID 0/1/5/10
• USB: multiple USB 2.0 / USB 3.1 Gen1 / USB 3.1 Gen2 ports including a Gen2 stick socket
• Management: Intel® AMT 12.0 and vPro support
• Watchdog: 3-level hardware watchdog (BIOS POST / BIOS BOOT / OS)
• BIOS: AMI Aptio 5.x (UEFI)
• Operating systems: Windows 10, Linux-64
• Mechanical: ATX 243.8 × 304.8 mm
• Operating conditions: 0 °C–60 °C, 5%–85% humidity
• Certifications: cTÜVus IEC62368-1, CE Class B Industrial Immunity, FCC-B
