BTX single-board computer BL i.MX6ULL/UL

i.MX 6NXP i.MX6micro SD card

Product Information

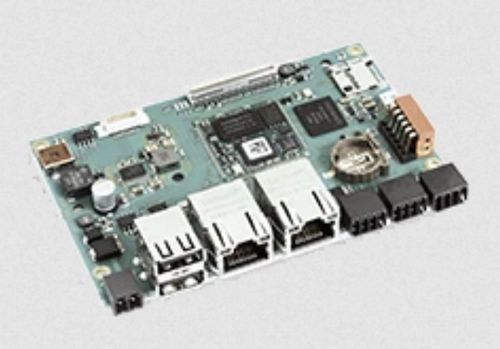

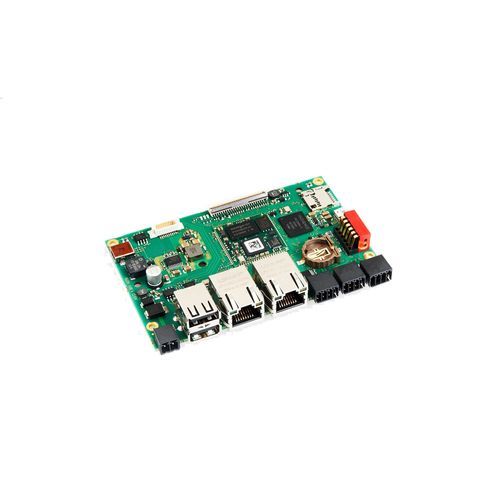

The BL i.MX6ULL/UL from Kontron Electronics is a modular CPU baseboard designed for embedded industrial applications. It ships with a pre-installed Embedded Linux image and a freely available Linux toolchain, enabling fast commissioning and streamlined development. The board family supports several processor module variants while maintaining a consistent hardware design for long-term availability.

Performance & Architecture
The board is offered with NXP i.MX6ULL (1x Arm® Cortex®-A7 @800 MHz) or i.MX6UL (1x Arm® Cortex®-A7 @528 MHz). Standard memory configurations include 512 MB DDR3 RAM and 512 MB NAND, with eMMC options from 4 GB up to 64 GB and a microSD slot for additional storage. The design simplifies DDR3 interfacing and supports multiple peripheral buses to reduce development complexity.

Communication Interfaces
The BL i.MX6ULL/UL provides industrial I/O and display support: RGB LCD interface, I²C and USB touch, Ethernet, USB hosts and OTG, serial ports (RS232/RS485), CAN 2.0B, digital and analog I/O, and expansion connectors for customization. These interfaces enable integration into diverse system environments.

Application Areas & Benefits
Suitable for IoT gateways, Industry 4.0 controllers, medical devices, and communication equipment where compact, low-power embedded controllers are required. The modular approach and scalable memory options reduce BOM complexity, shorten development cycles and facilitate product variants. Embedded Linux and the provided toolchain support flexible, license-free software development.

Highlights

• NXP i.MX6ULL 1x Arm® Cortex®-A7 @800 MHz
• NXP i.MX6UL 1x Arm® Cortex®-A7 @528 MHz
• 512 MB RAM, 512 MB NAND, eMMC up to 64 GB, microSD slot
• LCD Interface: RGB, I²C / USB touch

Technical data

• CPU: UL: NXP i.MX6UltraLite 1x Arm® Cortex®-A7 @528 MHz; ULL: NXP i.MX6ULL 1x Arm® Cortex®-A7 @800 MHz
• DDR3-RAM: 512 MByte (option: 256 MByte)
• NAND-Flash: 512 MByte (option: 256 MByte)
• NOR-FLASH: 1 MByte
• eMMC: 4 GByte (option: 8–64 GByte)
• microSD: 1x micro-SD slot
• NV Memory: 8 kByte nvSRAM
• Ethernet: 2x 10/100 Mbit/s
• USB: 2x USB 2.0 Host, 1x USB 2.0 OTG
• Serial: 1x RS232, 1x RS485
• CAN: 1x CAN 2.0B
• DIO/AIO: 2x DIO (24 V / up to 800 mA), 2x AIN (0..24 V)
• Display: RGB 24 bit up to 1366 x 768 @60fps
• Touch: I²C and USB
• Power: 24 V DC ±20 %, typical Linux runtime <1.5 W
• Operating temperature: 0 °C … +55 °C
• OS: Embedded Linux (Yocto distribution)
• Form factor: 105.5 x 67 mm
• RTC: 5 ppm accuracy, buffered by CR1220
• Debug: 1x console
• Expansion plugs: 2x USB, 1x I²C (option: SPI instead of nvSRAM)
• Audio: 1x buzzer
• Security (varies by variant): Secure Boot, RNG/TRNG, AES-128, cryptographic accelerators, secure storage, secure debug, OTP space
