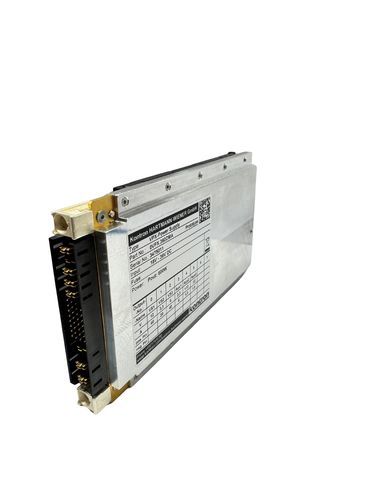

3U power supply VPX360DC/DCregulatedmultiple-output
Add to favorites
Compare this product
Characteristics
- Mounting / format
- 3U
- Type
- DC/DC
- Output
- regulated, multiple-output
- Technology
- SMPS, switching
- Protection
- with overcurrent protection, with overload protection, with short-circuit protection, with overheating protection
- Certifications
- RoHS
- Connection
- with USB outlet
- Applications
- for IPC
- Other characteristics
- computer-controlled, high-power, RoHS compliant, high-performance, isolated, wide input range, compact
- Input voltage
Max.: 68 V
Min.: 12 V
- Output voltage
-12 V, 3.3 V, 5 V, 12 V
- Current
1 A, 1 A, 6 A, 20 A, 40 A, 40 A
- Power
600 W
(0.82 hp)
Description
Product highlights
Product information
Kontron VPX360 power supplies are conduction-cooled COTS converters designed to VITA 62.0 and compatible with standard VPX chassis per VITA 46.0. The series delivers increased output power and current in a compact 3U x 5HP footprint using next-generation switching power technology. A dedicated input filter with booster and isolation stages enables operation on both 28V DC and 48V DC systems. The VPX360 includes onboard monitoring and control via I²C (IPMI) and Micro-USB. All mechanical and electrical interfaces comply with VITA 62.
Technical data
Compliance: Designed to VITA 62 specification. MIL-STD-461, MIL-STD-704, MIL-STD-1275 compliance (to be verified per VITA 62, par. 3.2.1). Ruggedization to MIL-STD-810 with standard conformal coating.
Power & Efficiency: Next-generation power conversion. Output power up to 600W with high efficiency. Wide input range: 12 V DC … 68 V DC (nominal 28V and 48V). Reverse polarity and input overvoltage protection.
Protection Features: Voltage-sense controlled over-voltage, under-voltage, over-current and over-temperature protection.
Management & Control: Microprocessor-controlled. I²C bus communication for monitoring (status, input and six output voltages and currents, temperatures). Micro-USB for communication and firmware updates. IPMI support per VITA 46.11.
Design & Components: No liquid/wet/aluminum electrolytic capacitors.
Variants
Technical specifications
- OTS VPX power supply with conduction cooling (VITA 62.0 compliant)
- Compact 3U x 5HP form factor, fits standard VITA 46.0 envelope
- Supports both 28V DC and 48V DC input platforms
- High output power and efficiency through next-generation switching technology
- I²C (IPMI) and USB monitoring; MIL-STD-461, MIL-STD-704, MIL-STD-1275 compliant
Product information
Kontron VPX360 power supplies are conduction-cooled COTS converters designed to VITA 62.0 and compatible with standard VPX chassis per VITA 46.0. The series delivers increased output power and current in a compact 3U x 5HP footprint using next-generation switching power technology. A dedicated input filter with booster and isolation stages enables operation on both 28V DC and 48V DC systems. The VPX360 includes onboard monitoring and control via I²C (IPMI) and Micro-USB. All mechanical and electrical interfaces comply with VITA 62.
Technical data
Compliance: Designed to VITA 62 specification. MIL-STD-461, MIL-STD-704, MIL-STD-1275 compliance (to be verified per VITA 62, par. 3.2.1). Ruggedization to MIL-STD-810 with standard conformal coating.
Power & Efficiency: Next-generation power conversion. Output power up to 600W with high efficiency. Wide input range: 12 V DC … 68 V DC (nominal 28V and 48V). Reverse polarity and input overvoltage protection.
Protection Features: Voltage-sense controlled over-voltage, under-voltage, over-current and over-temperature protection.
Management & Control: Microprocessor-controlled. I²C bus communication for monitoring (status, input and six output voltages and currents, temperatures). Micro-USB for communication and firmware updates. IPMI support per VITA 46.11.
Design & Components: No liquid/wet/aluminum electrolytic capacitors.
Variants
- VPX360 600W — non RoHS — SKU: VPXBL360-DMA21051 — Input: 28V DC — Outputs: VS1 [+12V] 40A; VS2 [+3.3V] 20A; VS3 [+5V] 40A; VAUX1 [+12V] 1A; VAUX2 [-12V] 1A; VAUX3 [3.3V] 6A
- VPX360DMA1 — RoHS conform — SKU: VPXBR360-DMA21051 — Input: 48V DC — Outputs: VS1 [+12V] 40A; VS2 [+3.3V] 20A; VS3 [+5V] 40A; VAUX1 [+12V] 1A; VAUX2 [-12V] 1A; VAUX3 [3.3V] 6A
Technical specifications
- Form factor: 3U x 5HP (fits VITA 46.0 envelope)
- Cooling: Conduction-cooled (VITA 62.0 compliant)
- Maximum output power: Up to 600W
- Input voltage range: 12 V DC … 68 V DC (nominal 28V and 48V)
- Output rails: VS1 +12V — 40A; VS2 +3.3V — 20A; VS3 +5V — 40A; VAUX1 +12V — 1A; VAUX2 -12V — 1A; VAUX3 3.3V — 6A
- Protections: Over-voltage, under-voltage, over-current, over-temperature, reverse polarity, input overvoltage protection
- Monitoring & control: Microprocessor controlled, I²C (IPMI) monitoring, Micro-USB for communication and firmware updates, IPMI per VITA 46.11
- Compliance / Ruggedization: VITA 62, MIL-STD-461, MIL-STD-704, MIL-STD-1275 (to be tested per VITA 62), ruggedized to MIL-STD-810
- Design: No liquid/wet/aluminum electrolytic capacitors
- Suitable for: 28V and 48V DC input platforms
