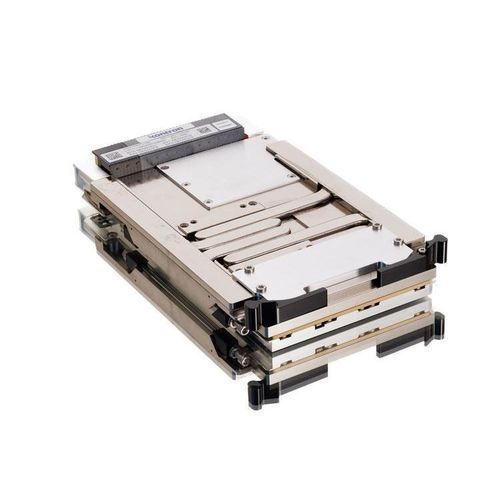

Storage server card VX307C series

embedded3UIntel® Xeon® D-1700

Rugged 3U VPX IO-Intensive Server Board - Intel® Xeon® D-1700/1800 SoCs – up to 10 cores / 20 threads with AI, DSP, and crypto acceleration. - I/O-Intensive profile with PCIe Gen4 and 100Gb Ethernet. - Secure by Design – TPM 2.0, Kontron SEC-Line. - Air- and conduction-cooled variants. - Aligned with SOSA™ technical standard. - Long-Term Program Support High-bandwidth embedded server for mission-critical applications. The Kontron VX307C is a rugged 3U VPX I/O-Intensive computing board built on the Intel® Xeon® D-1700/1800 (Ice Lake-D) platform. Combining server-class performance, unmatched I/O bandwidth, and military-grade ruggedization, the VX307C is ideally suited as a rugged embedded server for defense, aerospace, and high-performance industrial systems. It delivers 100Gb Ethernet, PCIe Gen4, and rich connectivity, making it the data hub for modern SOSA™-aligned HPEC architectures. Technical Specifications: - Processor: 8 and 10-Core™ Xeon® D-170 /1800 SoC running at 2.0 GHz - Cache: 15MByte or 20MByte - DRAM DDR4: Up to 64 GByte DDR4 memory with ECC - Backplanes: Slot Profile: SLT3-PAY-1F1F2U1TU1T1U1T- 14.2.16; Module Profile: MOD3-PAY-1F1F2U1TU1T1U1T-16.2.15-4 - I/O Features: 100Gb Ethernet Data Plane port, x4 PCIe Gen4 Expansion Plane, Dual 10GBASE-KR + 1000BASE-T ports Control Planes, Maintenance Port on RS232 or LVCMOS levels, x1 PCIe Gen3 / SATAIII for storage, DP++ 1.4 Graphic port, USB2.0 ports, USB3.0 ports, Dual serial lines, GPIOs, XMCIOs, Dual SMB/IPMB, JTAG, Power Supplies - Cooling: VITA47 Rugged Air-Cooled (-40/+70°C), VITA47 Rugged Conduction-Cooled (-40/+70°C) - Storage: x4 PCIe Gen3 link connected to M.2 2242 up to D5 and M Key socket - Frontpanel: 1000BASE-T, Maintenance port on RS232 or LVCMOS levels, DP++, USB3
