Digital I/O module CP-RIO6-B

serialRS-232USB

Product summary

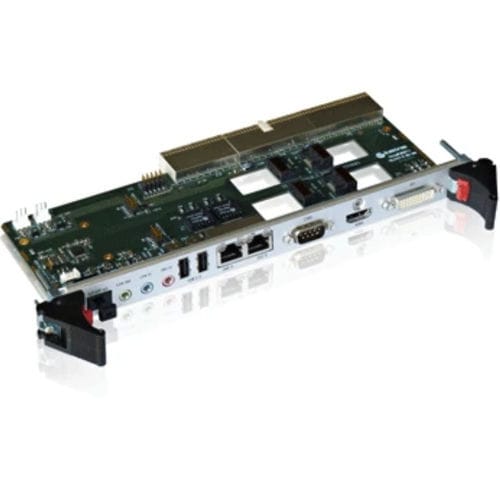

The CP-RIO6-B is a 4HP Rear I/O (RTM) module designed to extend the external interfaces of 6U CompactPCI processor cards. It provides multiple external connections including USB, Gigabit Ethernet, serial, DVI, HDMI, USB flash headers and SATA. The CP-RIO6-B216 variant is PICMG 2.16 compliant and routes the two rear I/O Gigabit Ethernet channels to the backplane.

Features / Interfaces

• Form factor: 4HP Rear I/O (RTM) for 6U CompactPCI processor cards
• External interfaces: USB (Type-A + flash headers), 2x Gigabit Ethernet (RJ45), DVI-D, HDMI, SATA, RS232/serial headers, HD audio headers
• Variant: CP-RIO6-B216 — PICMG2.16 compliant; GbE channels routed to backplane for system-wide Ethernet
• Additional headers: fan control, HD-audio and S/PDIF workarounds documented

Technical data

• Ethernet: 2x GbE (RJ45) on rear panel; CP-RIO6-B216 routes Ethernet to backplane (PICMG2.16)
• USB: multiple USB ports on rear panel + 2x USB flash headers
• Video: DVI-D and HDMI connectors on rear panel
• SATA: SATA connectors for external drives (cable connections); no internal hard disk
• Serial: RS232 on rear panel; additional headers for RS422/RS485 as applicable
• Audio & misc: High Definition Audio headers; fan-control headers
• Environmental (typical): operating 0–60°C; relative humidity up to 93% (non-condensing) — consult datasheet for full conditions

Compatibility & applications

• Compatible CompactPCI processor cards: CP6002, CP6003, CP6004, CP6005, CP6006
• Typical applications: embedded systems, industrial automation, test & measurement, communication appliances requiring external USB, video, storage and Ethernet access
• Integration notes: CP-RIO6-B216 recommended where PICMG2.16 backplane Ethernet routing is required
