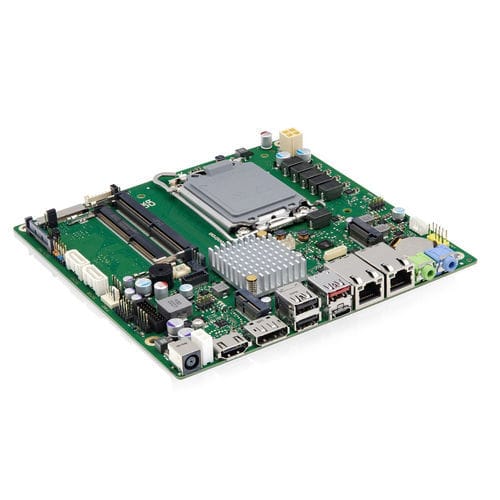

Mini-ITX motherboard K3831-H Thin mITX

Intel® PentiumIntel® Core™ i seriesIntel® H610

The industrial Motherboard K3831-H Thin mITX provides highest performance and functionality for demanding requirements on a small and ultra thin form factor. It supports the Intel® Core™ processors (12th/13th/14th Gen/Series 2) as well as the Intel® Pentium® & Intel® Celeron® processor series. Despite the limited space on this motherboard, the K3831-H is equipped with connectors for HDMI V2.0b, Display Port V1.4a, Dual Channel LVDS, Dual GbE LAN and 9x USB (2.0, 3.2 Gen1 and 3.2 Gen2). - Latest DDR5 memory technology for best-in-class system performance - Intel® UHD Graphics 7xx driven by Xe Architecture; DPP-, HDMI-, and LVDS- support - Dual LAN 1GbE incl. Teaming - M.2 Key-M Gen4 & Key-E; Powerful USB 3.2 Gen2 - 8-Bit GPIO Benefits of Kontron motherboards: - Highest quality through German engineering and production - Strict lifecycle management and reliable product maintenance - Comprehensive feature and tool set - Excellent technical support - Beneficial total-cost-of-ownership Processor: Intel® Core™ Processors (12th/13th/14th Gen/Series 2), Intel® Pentium®, Intel® Celeron® Chipset: Intel® H610 Main Memory: 2x DDR5-5600 SODIMM, up to 96GB, Dual Channel, non-ECC Graphics: Intel® UHD Graphics 7xx Display: 1x Display Port V1.4a, 1x HDMI V2.0b, Dual-Channel LVDS Audio: Realtek ALC256, High Definition Audio Codec, 2W@4Ohm stereo speaker support Ethernet: Realtek RTL8111H, Intel® i219LM, LAN Teaming USB: 2x USB 2.0 (rear), 3x USB 2.0 (header), 1x USB 3.2 Gen 2 (rear, Type-A), 1x USB 3.2 Gen 2 (rear, Type-C), 2x USB 3.2 Gen 1 (header) Serial: 1x RS232 (header) GPIO: 1x 8-bit (header) SATA: 2x SATA-600 Expansion: 1x M.2 2242 (Key-M, Gen 4), 1x M.2 2230 (Key-E, WLAN/Bluetooth, CNVi) Power: Dual-Range DC 12 V/19-24 V BIOS: AMI Aptio 5.x (UEFI) Watchdog: BIOS POST-/BOOT-/OS-HW RTC: integrated Cooling: 1x CPU-Fan, 1x System-Fan (both 4Pin, PWM) OS: Windows 10/11, Windows 10 IOT, Linux-64 Dimensions: Mini-ITX 170 x 170 mm Operating Temp: 0°C - 60°C Humidity: 5%-85% Certifications: cTÜVus, CE Class B, UKCA, FCC-B
