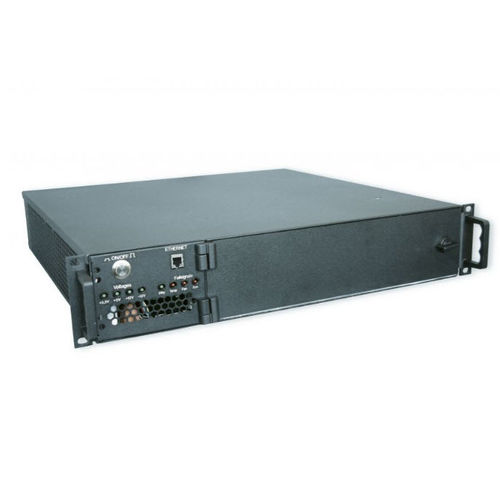

Rack-mount chassis R2U4S

19"6U2U

Description
The R2U4S is a 19-inch 2U rack-mount industrial chassis designed to host four 6U VME or CompactPCI (cPCI) boards. Its modular architecture includes a protective door and a modular PSU that can be replaced or upgraded to redundant or higher-power units to match application requirements. The chassis has passed mechanical, thermal and EMC/EMI qualification tests, making it suitable for industrial, airborne and naval deployments as well as controlled-environment applications.

Highlights

• 19-inch rack, 2U height
• 4-slot 6U card cage (VME or cPCI)
• 80 mm VITA 36 rear I/O bay
• VITA 38 backplane compatibility
• Front-to-rear cable way for routing

Technical specifications

• Form factor: 19-inch rack, 2U
• Card cage: 4-slot, supports 6U VME or cPCI boards
• Rear I/O: 80 mm VITA 36 bay
• Backplane: VITA 38 compatible backplane
• Cabling: Front-to-rear cable way for cable routing
• Enclosure: Door to protect internal electronics
• Power: Modular PSU, configurable for redundant or higher-power units
• Qualifications: Passed mechanical, thermal and EMC/EMI tests
• Applications: Suitable for industrial, airborne and naval applications
