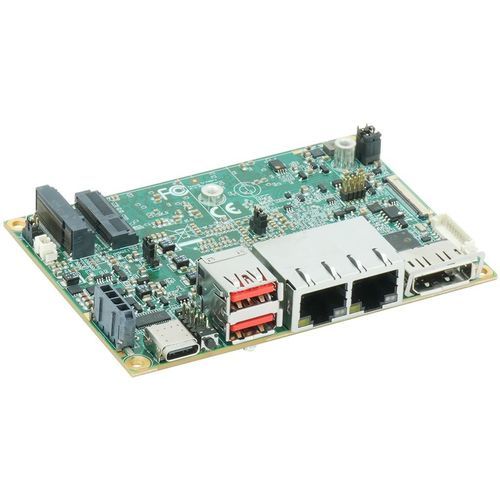

Pico-ITX single-board computer 2.5”-SBC-AMV-0-x7835RE-XT

2.5"Intel® AtomIntel® Core™

Product overview
2.5"-SBC-AMV/ADV is a 2.5" Pico-ITX single board computer powered by Intel® Atom® x7000RE/x7000E Series, Intel® Core™ i3 N-Series and Intel® N-Series processors with Intel® UHD Graphics Gen12 and next‑gen LPDDR5 memory. It offers improved CPU and GPU performance, accelerated media transcoding and faster AI inference, and includes an LVDS/eDP combo connector suited for all-in-one industrial displays and LVDS panel projects.

Key highlights

• Improved processing and graphics performance with enhanced AI inference capability
• LPDDR5 memory support up to 4800 MT/s (4/8/16 GB options)
• Designed for operation in wide temperature ranges and unstable power environments
• Hardware-based security features for data protection and authentication
• Distinct I/O: 2x LAN, 1x full-size DisplayPort, 1x LVDS/eDP combo

Twin products

• 2.5"-SBC-AML/ADN — suited for industrial manufacturing and real-time control
• 2.5"-SBC-AMH/ADH — suited for retail, commercial and audio-enabled systems

Technical data
Processor
[Standard]: Intel® Atom® x7433RE (4C, 6M, 1.5/3.4 GHz, 9 W); Intel® Atom® x7835RE (8C, 6M, 1.3/3.6 GHz, 12 W); Intel® Core™ i3-N305 (8C, 6M, 1.8/3.8 GHz, 9←15 W). [Project]: Intel® Atom® x7211RE (2C, 6M, 1.0/3.2 GHz, 6 W); Intel® Atom® x7213RE (2C, 6M, 2.0/3.4 GHz, 9 W); Intel® Atom® x7211E (2C, 6M, 1.0/3.2 GHz, 6 W); Intel® Atom® x7213E (2C, 6M, 1.7/3.2 GHz, 10 W); Intel® Atom® x7425E (4C, 6M, 1.5/3.4 GHz, 12 W); Intel® N50 (2C, 6M, 1.0/3.4 GHz, 6 W); Intel® N97 (4C, 6M, 2.0/3.6 GHz, 12 W); Intel® N200 (4C, 6M, 1.0/3.7 GHz, 6 W)

Main Memory
4 GB / 8 GB / 16 GB LPDDR5 down, up to 4800 MT/s

Graphics Controller
Intel® UHD Graphics Gen12

Display
1x LVDS/eDP combo (24-bit, 2-ch, up to 1920 x 1200 @ 60 Hz / eDP 2-lane, 1920 x 1200 @ 60 Hz); 2x DisplayPort (4096 x 2160 @ 60 Hz — 1x full-size DP rear, 1x DP via USB-C rear); triple display support

Ethernet Controller
Intel® I226 family controller

Specifications

• Form factor: 2.5" (Pico-ITX) single board computer
• Processor options: Intel® Atom® x7000RE/x7000E series; Intel® Core™ i3 N-Series; Intel® N-Series
• Memory: LPDDR5 down, 4/8/16 GB options, up to 4800 MT/s
• Graphics: Intel® UHD Graphics Gen12
• Display interfaces: 1x LVDS/eDP combo, 2x DisplayPort (including DP via USB-C)
• Triple display capability; ideal for industrial displays and LVDS panel integrations
• Network: Intel® I226 family Ethernet
• Built for wide-temperature operation and unstable power conditions; hardware security features
