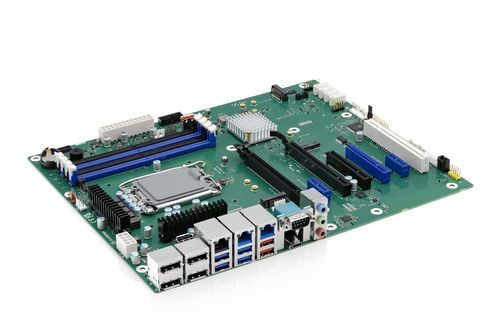

ATX motherboard K3851-R

Intel® Celeron®Intel® Pentium12th Generation Intel® Core™

Product overview
The Industrial Motherboard K3851-R ATX features the Intel® R680E chipset and supports Intel® Core™ processors (12th/13th/14th Gen/Series 2) as well as Intel® Pentium® and Intel® Celeron® series. Engineered for continuous 24/7 operation with an extended operating temperature up to 60 °C, the board provides iAMT-based out-of-band management and supports DDR5 memory, PCIe Gen5, TSN and Realtime (TCC). It is intended for industrial automation use cases such as 19" rack control PCs, medical systems, high-performance CAD/video-editing workstations and multi-display systems.

Benefits

• German engineering and production for consistent manufacturing standards
• Strict lifecycle management and long-term product maintenance
• Comprehensive feature set and integrated tooling for industrial deployment
• Dedicated technical support for system integration
• Optimized total cost of ownership through maintainability and longevity

Product highlights

• DDR5 memory support for improved system performance
• Intel® UHD Graphics 7xx driven by Xe Architecture (graphics depend on CPU)
• Triple LAN (1 GbE / 2.5 GbE) with Teaming and TSN support
• Onboard dual M.2 Key-M for NVMe SSDs and single M.2 Key-E for WLAN
• High-speed I/O: USB 3.2 Gen 2 / Type-C, 4x COM ports, GPIO and PCI expansion slot

Technical specifications

• Processor: Intel® Core™ (12th/13th/14th Gen/Series 2); Intel® Pentium® / Intel® Celeron®
• Chipset: Intel® R680E Chipset
• Main memory: 4x DDR5-4800 DIMM sockets, up to 192 GB, Dual Channel, ECC support
• Graphics controller: Intel® UHD Graphics 7xx (depends on installed processor)
• Display: 4x DP P V1.4a @8K; optional VGA extension D3653
• Storage: Dual M.2 Key-M for NVMe SSDs; additional M.2 Key-E for WLAN
• Networking: Triple LAN (1 GbE / 2.5 GbE) with Teaming and TSN support
• Expansion & I/O: PCI slot, USB 3.2 Gen 2 / Type-C, 4x COM, GPIO
• Management: iAMT-based out-of-band management features
• Performance features: Supports DDR5, PCIe Gen5 and Realtime (TCC)
• Reliability: Designed for continuous 24/7 operation and extended temperature range up to 60 °C
