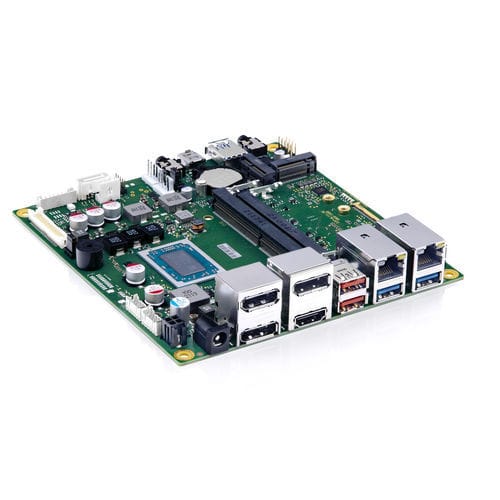

Mini-STX motherboard D3724-R series

AMD Ryzen™ Embedded V1000AMD Ryzen™ Embedded R1000AMD Ryzen™ R2514

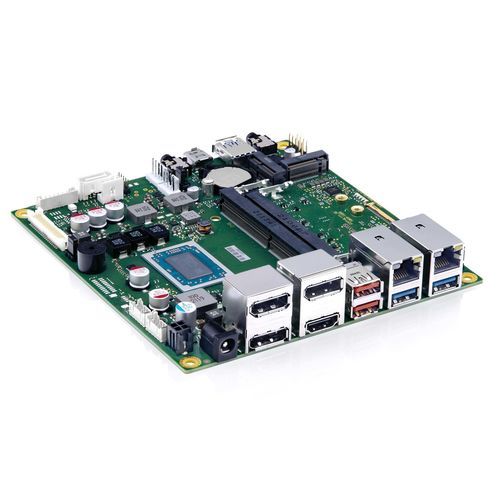

Industrial Motherboard supporting the AMD Ryzen™ Embedded R2000 Series SOC - AMD Radeon™ Vega Graphics (within SoC) - Up to 3x DisplayPort V1.4 plus HDMI V2.0b - Dual Channel LVDS (24 Bit) and eDP V1.3 (4k) onboard - Designed for Fanless Operation - MS Windows 11 Support The industrial motherboard D3724-R mSTX supports the AMD Ryzen™ Embedded R2000 series processors with integrated AMD Radeon™ Vega Graphics and can be used in applications with high graphical requirements like casino gaming, medical displays, thin clients and ultra small industrial PCs. It is equipped with up to three DisplayPorts, one HDMI Port, one embedded DisplayPort and one Dual-Channel LVDS (24bit) and powers up to four independent displays in 4K resolution. Depending on the requirements for (graphical) performance, there are three motherboard versions available. Benefits of Kontron motherboards: - Highest quality through German engineering and production - Strict lifecycle management and reliable product maintenance - Comprehensive feature and tool set - Excellent technical support - Beneficial total-cost-of-ownership Features - Processor: AMD Embedded R2312 SoC, AMD Embedded R2314 SoC, AMD Embedded R2514 SoC - Chipset: SoC - Main Memory: 2x DDR4 2400/2666 SDRAM up to 32 Gbyte - Graphics Controller: Integrated AMD Radeon™ Vega Graphics - Display: Up to 3x DPP V1.4 incl. DP++ support, 1x HDMI V2.0b, 1x embedded DP (eDP V1.4; supporting 4K resolutions; shared with DPP1), 1x Dual-Channel 24bit LVDS (shared with DPP3). Supported combinations: D3724-R2/-R3: 1x DPP + HDMI + LVDS + eDP; 2x DPP + HDMI + LVDS; 2x DPP + HDMI + eDP; 3x DPP + HDMI. D3724-R1: HDMI + LVDS + eDP; 1x DPP + HDMI + LVDS; 1x DPP + HDMI + eDP; 2x DPP + HDMI - Audio Controller: Realtek ALC256 - Audio: High Definition Stereo Audio Codec - Ethernet: Intel® i210 & Realtek RTL8111H with 10/100/1000 MBit/s - USB: 2x USB 2.0 (by header), 2x USB 3.2 Gen1 (rear), 2x USB 3.2 Gen2 (rear), 1x USB 3.2 Gen1 (front), 1x USB 3.2 Gen1 (Type C, front) - Serial: 1x RS232 (by header); 1x RS232/422/485 (by header) - Available I/Os: 1x 8-Bit GPIO (by header) - SATA: 1x Serial ATA III 600 Interface (up to 6GBit/s), NCQ, AHCI - Expansion: 1x M.2 PCIe x4 (Key-M: 2230/2242/2280), 1x M.2 WLAN/Bluetooth (Key-E: 2230, supports PCIe x1/Gen3 + USB 2.0) - Power connector: External/Internal DC-In (DC Jack/4-Pin Micro-Fit) - Input Voltage: DC Input 12 V or 19-28 V, max. 5 A/65 W (external DC-In), max. 10 A/100 W (internal DC-In) - BIOS: AMI Aptio 5.x (UEFI) BIOS - Watchdog: 3 level HW Watchdog (BIOS POST/BIOS Boot/OS) - Real Time Clock: Integrated - Cooling: 2x PWM fan (CPU/System) - Operating System: MS Windows 10 / MS Windows 11, Linux-64 - Mechanical Dimensions: Mini-STX: 5.5“ x 5.8“ (140 x 148 mm) - Operating Temperature: -10 °C – 60 °C - Humidity: 5%-85% - Certifications: CE Class-B, UKCA, cTÜVus acc. IEC62368-1
