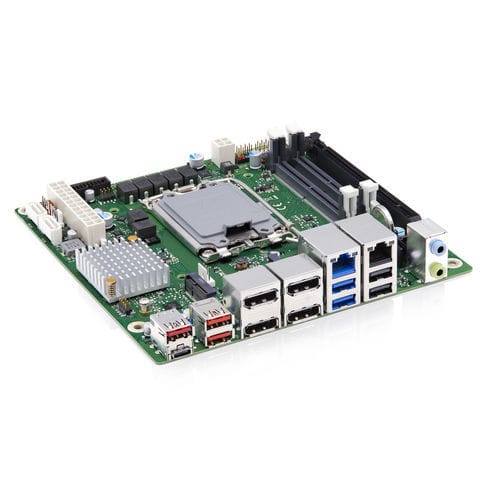

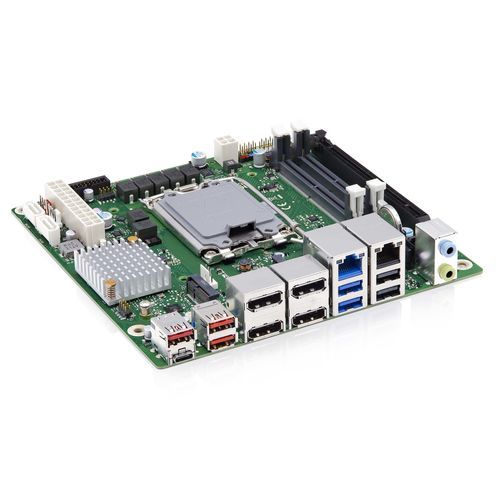

Mini-ITX motherboard K3833-Q

Intel® PentiumIntel® Celeron® familiesIntel® Core™

The Industrial Motherboard K3833-Q mITX is equipped with the highly performant Intel® Q670E Chipset. It supports a wide range of processors including Intel® Core™ processors (12th/13th/14th Gen/Series 2) and Intel® Pentium®/Intel® Celeron® processor series. Designed and approved for 24/7 continuous operation and an enhanced temperature range up to 60°C, the K3833-Q mITX provides high functionality and fits perfectly with the special requirements of certain markets. It offers iAMT-based Out-of-Band Management features. Additionally, the K3833-Q provides TSN and Realtime support (TCC) for specific industrial applications. - Latest DDR5 memory technology for best-in-class system performance - Intel® UHD Graphics 7xx driven by Xe Architecture; DPP- and eDP- support - Dual LAN 1GbE/2.5GbE including Teaming and TSN support - M.2 Key-M & Key-E; Powerful USB 3.2 Gen2 - Multirail PSU Benefits of Kontron motherboards: - Highest quality through German engineering and production - Strict lifecycle management and reliable product maintenance - Comprehensive feature and tool set - Excellent technical support - Beneficial total-cost-of-ownership Processor: Intel® Core™ Processors (12th/13th/14th Gen/Series 2), Intel® Pentium®/Intel® Celeron® processor series Chipset: Intel® Q670E Chipset Main Memory: 2x DDR5-5600 SODIMM Sockets up to 96 GByte, Dual Channel Graphics Controller: Intel® UHD Graphics 7xx (depends on installed processor) Display: 4x DisplayPort V1.4a up to 8k; 1x eDP V1.4b @4K Audio Controller: Tempo Semiconductor 92HD91B Audio: 5.1-channel, High Definition Audio Codec Ethernet: Intel® i219LM with 10/100/1000 MBit/s, iAMT features; Intel® i226LM with 10/100/1000/2500 MBit/s, TSN Support USB: 3x USB 3.2 Gen 2 (rear I/O, Type-A); 1x USB 3.2 Gen 2 (rear I/O, Type-C with locking option); 2x USB 3.2 Gen1 (rear I/O, Type-A); 2x USB 2.0 (rear I/O, Type-A); 2x USB 3.2 Gen1 (by header) Serial: 1x RS232 (by header) Available I/Os: 1x 8-Bit GPIO (by header) SATA: 2x Serial ATA III 600 Interface (up to 6GBit/s), NCQ, AHCI, RAID 0/1 Expansion: 1x M.2 2242 (Key-M, PCIe/NVME SSD modules); 1x M.2 2230 (Key-E, WLAN/Bluetooth modules, incl. CNVi support); PCIe x16: 1x 16 lanes, Gen5, Bifurcation Support Power connector: ATX (Multirail) plus 4-pin socket (12 V for CPU) Input Voltage: Multirail BIOS: AMI Aptio 5.x (UEFI) BIOS Watchdog: 3 level HW Watchdog (BIOS POST/BIOS Boot/OS) Real Time Clock: Integrated Cooling: 2x PWM fan (CPU/System) Operating System: Windows 10; Windows 10 IoT; Windows 11; Linux-64 Mechanical Dimensions: Mini-ITX: 6.7“ x 6.7“ (170 x 170 mm) Operating Temperature: 0°C-60°C Humidity: 5%-85% Certifications: cTÜVus acc. IEC62368-1, CE Class B incl. Industrial Immunity, UKCA, FCC-B verified
