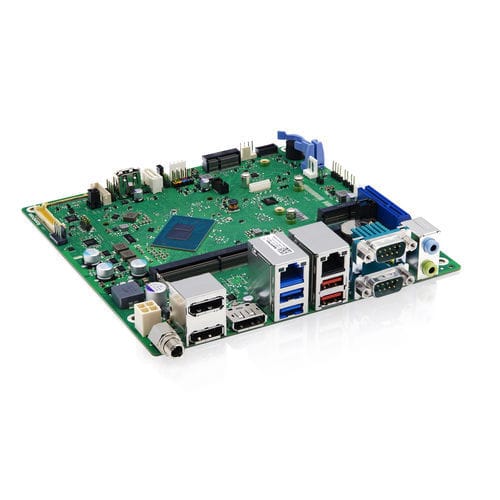

Mini-ITX motherboard K3931-N series

Intel® Core™ i3-N305Intel® Processor N97Intel® Processor N50

Industrial Motherboard supporting the Intel® Core™ i3 processors & Intel® processors N series - Latest DDR5 memory technology for best-in-class system performance - Intel UHD Gen12 Graphics - driven by Xe® architecture (within SoC) - Up to 3x DisplayPort V1.4 - Dual Channel LVDS (24 Bit) and eDP V1.4b (4 K) onboard - Designed for fanless operation The Industrial Motherboard K3931-N mITX supports the Intel® Core-i3 and Intel® Processor Alder Lake N series with latest UHD Gen12 graphics based on Intel® Xe architecture. It is equipped with three DisplayPorts, one embedded DisplayPort and one Dual-Channel LVDS (24bit) and powers up to three independent displays with up to 3x 4K resolution. It is also equipped with extension slots for PCIe and two M.2 connectors and offers many other functions like GPIO, four COM ports, one ccTalk port and USB 3.2 Gen2. Designed and approved for 24/7 continuous operation and an enhanced temperature range up to 60° C the K3931-N mITX fits perfectly with special requirements of certain markets. Benefits of Kontron motherboards: - Highest quality through German engineering and production - Strict lifecycle management and reliable product maintenance - Comprehensive feature and tool set - Excellent technical support - Beneficial total-cost-of-ownership Technical Specifications: - Processor: Intel® Core® i3 Processors & Intel® Processors N-series - Chipset: N1: Intel® Processor N50 (2C/6W) SoC, N2: Intel® Processor N97 (4C/12W) SoC, N4: Intel® Processor N200 (4C/6W) SoC, N6: Intel® Core® i3 N305 (8C/15W) SoC - Main Memory: 1x DDR5-4800 SODIMM Sockets up to 32 GByte, non-ECC - Graphics Controller: Intel UHD Graphics driven by Intel® Xe with up to 32 execution units (EUs) - Display: Up to 3x DPP V1.4a (up to 4K resolution1), 1x Embedded DP (eDP V1.4b up to 4K resolution), 1x Dual-Channel 24bit LVDS - Audio Controller: Realtek ALC256 - Audio: Stereo, High Definition Audio Codec - Ethernet: Realtek RTL8111H with 10/100/1000 MBit/s, Teaming support; Intel® i226LM with 10/100/1000/2500 MBit/s, TSN Support - USB: 3x USB 2.0 (by header), 1x USB 2.0 stick socket; 2x USB 3.2 Gen1 (Rear), 2x USB 3.2 Gen1 (by header); 2x USB 3.2 Gen2 (Rear), 1x USB3.2 Gen2 Key A (header) for USB3 Type-C option - Serial: 1x RS232/422/485; 3x RS232, 1x ccTalk (2x RearIO, 3x by header) - Available I/Os: 8 Bit GPIO (by header); WLAN LED support, WLAN enable/disable support - SATA: 1x Serial ATA III 600 Interface (up to 6GBit/s), NCQ, AHCI - Expansion: 1x M.2 PCIe 2230/2242/2280 (Key-M ,PCIe x2 Gen3/NVMe SSD modules); 1x M.2 PCIe 2242/2280 (Key-B, PCIe x1 Gen3/USB/SATA SSD modules); 1x M.2 PCIe 2230 (Key-E, WLAN CNVi only/Bluetooth USB modules); 1x PCIe x4 (1 lane, Gen3, open slot) - Power connector: External/Internal DC-In 8-34V (DC Jack/4-Pin Mini-Fit) - Input Voltage: DC Input 8 V - 34 V (max. 10 A /max. 125 W) - BIOS: AMI Aptio 5.x (UEFI) BIOS - Watchdog: BIOS POST-/BIOS BOOT-/OS-HW Watchdog - Real Time Clock: integrated - Cooling: 2x PWM fan (CPU/System) - Operating System: Windows 10, Windows 11, Windows 10 IoT, Linux-64 - Mechanical Dimensions: Mini-ITX: 6.7“ x 6.7“ (170 x 170 mm) - Operating Temperature: 0°C-60°C - Humidity: 5%-85% - Certifications: cTÜVus acc. IEC62368-1, CE Class B incl. Industrial Immunity, UKCA, FCC-B verified
