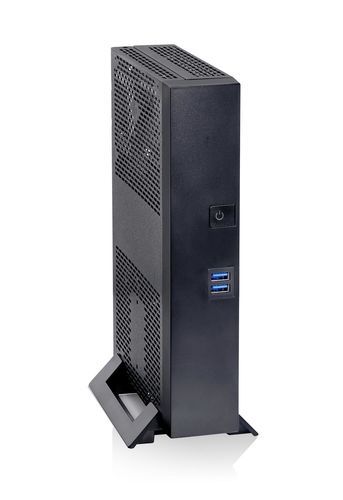

Wall-mounted PC chassis SMARTCASE™ S740

benchtopembeddedcompact

Product Information
The SMARTCASE™ S740 is designed for the mITX K4031-H motherboard, based on Intel® Core™ Ultra Series 1 (Meteor Lake-H), and for the K4131-P mITX motherboard family which supports AMD Ryzen™ AI Embedded P100 series processors. Its exchangeable Rear-IO makes the SMARTCASE™ S740 prepared for future mITX Kontron motherboards.

Overview
Like the entire SMARTCASE™ family, the S740 features a clean, compact design with dual front USB 3.2 Gen1 connectors for easier handling. It supports both active and passive cooling. With a wide-range DC input from 8 to 34 V, this kit solution meets the power requirements of many industrial and embedded applications. The SMARTCASE™ S740 can be installed horizontally or vertically and includes a wall mount bracket.

Highlights

• Compact design with dual front USB 3.2 Gen1
• Dimensions: 250 x 52 x 191 mm
• Low profile extension slot
• Option for internal 65 W PSU module
• Horizontal and vertical stand plus wall mount bracket

Technical specifications

• Compatible motherboards: mITX K4031-H (Intel® Core™ Ultra Series 1, Meteor Lake-H) and K4131-P (AMD Ryzen™ AI Embedded P100 series)
• Exchangeable Rear-IO for future mITX Kontron motherboards
• Front I/O: Dual front USB 3.2 Gen1 connectors
• Cooling: Supports active and passive cooling
• Power input: Wide-range DC input 8–34 V
• Optional internal PSU module: 65 W
• Chassis dimensions: 250 x 52 x 191 mm
• Expansion: Low profile extension slot
• Mounting/orientation: Horizontal and vertical use; includes wall mount bracket
