OpenVPX GPU module VX33211

NVIDIAembeddedrugged

Overview

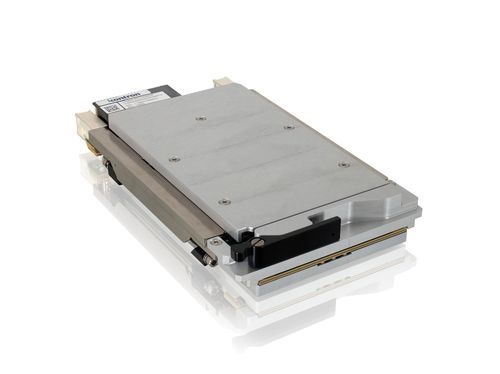

The Kontron VX33211 is a 3U VPX GPU board designed for rugged, mission-critical embedded platforms. Powered by the NVIDIA® RTX PRO™ 2000 Blackwell Embedded GPU, it provides advanced graphics, AI inference and GPGPU acceleration for compute-intensive edge applications. Built on OpenVPX architectures and SOSA-aligned design principles, the VX33211 targets defense, aerospace and other high-reliability systems.

Highlights

• NVIDIA® RTX PRO™ 2000 Blackwell Embedded GPU with up to 13.78 TFLOPS FP32
• 3328 CUDA cores and 104 Tensor Cores for AI inference and GPGPU tasks
• 3U VPX form factor (OpenVPX) designed in alignment with SOSA® for open-system interoperability
• Rugged air-cooled and conduction-cooled build options for harsh environments
• PCIe Gen4 connectivity with support for advanced graphics and compute APIs

Technical data (table)
GPU: NVIDIA® RTX PRO™ 2000 Blackwell Embedded
Memory: 8 GB GDDR7 @ 24 Gbps / 128-bit / 384 GB/s
Management & Control: IPMI controller for VITA46.11 Tier3 and out-of-band system management
Frontpanel: 2x mDP++ 1.4 (air-cooled build option)
Backplanes: IOS: PCI Express 4.0 x8; Optional 2x DisplayPort 1.4; Expansion Plane: x4 PCIe up to Gen4

Technical specifications

• Form factor: 3U VPX (OpenVPX, SOSA-aligned)
• GPU: NVIDIA® RTX PRO™ 2000 Blackwell Embedded
• Compute performance: up to 13.78 TFLOPS FP32
• Compute cores: 3328 CUDA cores; 104 Tensor Cores
• Memory: 8 GB GDDR7, 24 Gbps, 128-bit interface, 384 GB/s bandwidth
• Connectivity: PCIe Gen4 (IOS: PCIe 4.0 x8), Expansion Plane x4 PCIe up to Gen4
• Front panel I/O (air-cooled): 2x mDP++ 1.4
• Management: IPMI controller for VITA46.11 Tier3, out-of-band system management
• Cooling variants: rugged air-cooled and conduction-cooled builds
• Target applications: defense, aerospace, rugged embedded and mission-critical edge computing
