Digital I/O module CP-RIO6-001

RS-232USBgigabit Ethernet

Overview

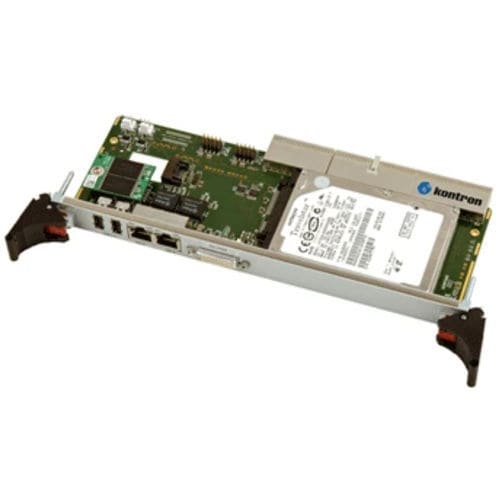

The CP-RIO6-001 is a 4HP rear I/O module designed for CP6002, CP6003, CP6004, CP6005 and CP6006 6U CompactPCI processor boards. It complies with Kontron's proprietary RTM pinout rev 1.11 and provides external access to USB, Ethernet, serial interfaces, DVI-D/HDMI video, USB Flash and SATA connections. Certain versions include a socket for a 2.5" SATA HDD/SSD.

Available versions

• Version 1: Hard disk socket for 2.5" HDD/SSD. Rear panel: 1x DVI/HDMI, 2x USB, 2x Ethernet.
• Version 2: No hard disk socket. Rear panel: 2x DVI/HDMI, 2x USB, 2x Ethernet.
• Version 3: Hard disk socket for 2.5" HDD/SSD. Rear panel: VGA, 2x USB, 2x Ethernet.

Planned variant
Planned: Rear transition module with triple-display outputs. Rear panel: VGA + 2x DVI/HDMI, 2x USB, 2x Ethernet. This variant does not include the 2.5" HDD/SSD socket.

Technical data
Mouse: n/a
Keyboard: n/a
SATA: 2x SATA connectors
Serial: 1x RS232, 1x RS422 on headers
Video output: 1x DVI-D/HDMI (optional 2x DVI-D/HDMI or 1x VGA depending on version)
USB: Rear USB ports and USB Flash support
Ethernet: 2x GbE (RJ45) on rear panel (per version)

Features / specifications

• Form factor: 4HP rear I/O module for 6U CompactPCI processor boards (compatible with CP6002–CP6006)
• RTM compliance: Kontron proprietary RTM pinout rev 1.11
• Storage: Optional 2.5" SATA HDD/SSD socket on select versions; 2x SATA connectors
• Serial interfaces: 1x RS232 and 1x RS422 via headers
• Video outputs: DVI-D/HDMI standard; some versions/options provide dual DVI-D/HDMI, VGA, or triple-display via upcoming transition module
• I/O: USB ports and USB Flash support, 2x Ethernet ports on rear panel (version-dependent)
• Rear panel configurations vary by version — consult Available versions for connector sets
