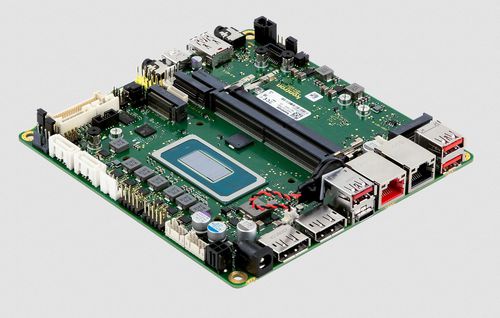

MSTX motherboard K4021-U mSTX

embeddedIntel® Core™ Ultra 7 155UIntel® Core™ Ultra 5 125U

The Industrial Motherboard K4021-U mSTX is based on the latest Intel® Core™ Ultra processors with powerful UHD Gen12 graphics using Intel® Xe architecture. There are two DisplayPorts, one DisplayPort™ via front USB-Type-C and one Display Port™ via rear USB Type-C with Thunderbolt 4 support plus onboard connectors for Embedded DisplayPort™ and Dual-Channel 24bit LVDS panels. Four independent displays with up to 4K display resolution or up to two with 8K are supported. The K4021-U is equipped with four M.2 (Storage and Wifi) connectors and in addition to this offers many other connectivity options like GPIO, two COM ports, Thunderbolt 4, and USB 3.2 Gen2. Designed and approved for 24/7 continuous operation and an enhanced temperature range up to 60 °C the K4021-U is applicable in many vertical markets. Benefits of Kontron motherboards: Highest quality through German engineering and production Strict lifecycle management and reliable product maintenance Comprehensive feature and tool set Excellent technical support Beneficial total-cost-of-ownership
