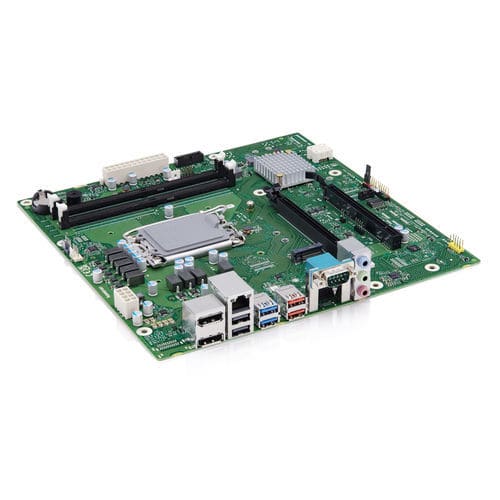

Micro-ATX motherboard K3843-B2 µATX

Intel® Atom N2600Intel® PentiumIntel® Core™ i series

The Extended Lifecycle Motherboard K3843-B2 µATX is equipped with the highly performant Intel® B660 Chipset. It supports Intel® Core™ processors (12th/13th/14th Gen/Series 2) and Intel® Pentium®/Intel® Celeron® processor series. Designed for 24/7 continuous operation. Benefits of Kontron motherboards: - Highest quality through German engineering and production - Strict lifecycle management and reliable product maintenance - Comprehensive feature and tool set - Excellent technical support - Beneficial total-cost-of-ownership Specifications: - Cost-effective iB660 platform - Latest DDR5 memory technology for best-in-class system performance - Intel® UHD Graphics 7xx driven by Xe Architecture - M.2 2280 Key-M SSD socket onboard - Powerful USB 3.2 Gen2, 1x COM (RS-232) Features: - Processor: Intel® Core™ Processors (12th/13th/14th Gen/Series 2), Intel® Pentium®/Intel® Celeron® processor series - Chipset: Intel® B660 Chipset - Main Memory: 2x DDR5-4800 DIMM Sockets up to 96 Gbyte, Dual Channel, non-ECC - Graphics Controller: Intel® UHD Graphics 7xx - Display: 2x DPP V1.4a up to 8K - Audio Controller: Tempo Semiconductor 92HD91B - Ethernet: Intel® i219LM with 10/100/1000 MBit/s - USB: Multiple USB 3.2/2.0 ports - Serial: 1x RS232 - SATA: 2x Serial ATA III 600 Interface - Expansion: 1x M.2 2280, PCIe x16 - Power connector: ATX (Multirail) plus 8-pin socket - BIOS: AMI Aptio 5.x (UEFI) - Operating System: Windows 10, Windows 11, Linux-64 - Mechanical Dimensions: µATX (243.8 x 243.8 mm) - Operating Temperature: 10°C-50°C - Humidity: 5%-85% - Certifications: cTÜVus, CE Class B, UKCA
