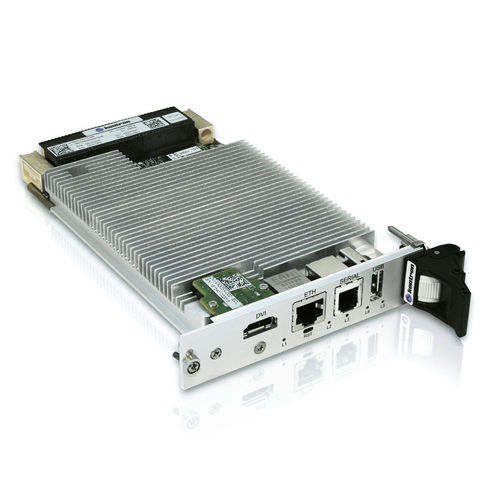

VPX single-board computer VX3058

Intel® Xeon® D-1500SATA3M.2

Product overview
Kontron 3U VPX single board computer VX3058 integrates an 8-core Intel® Xeon® D processor with SWaP-C optimized design and multiple mezzanine expansion options (XMC, M.2, storage, graphics, I/O). It supports dual 10 Gigabit Ethernet, high-bandwidth PCIe Gen3 and high-speed DDR4 memory, and is designed for high-performance embedded platforms in demanding environments.

Key highlights

• Intel® Xeon® D-1500 octa-core, 1.6 / 1.7 GHz, TDP 35W
• Suitable for virtual machines and HPEC (high-performance embedded computing)
• Long life-cycle support and 10-year silicon reliability
• Dual 10 Gigabit Ethernet and x8 PCIe Gen3 backplane bandwidth
• Up to 32 GB soldered DDR4 with ECC; mezzanine options for XMC, M.2, graphics and storage; air-cooled and conduction-cooled variants

Application examples

• Radar and sonar systems
• Imaging and signal processing
• Airborne fighter and UAV radar
• Long-term programs in harsh environments

Architecture and I/O
VX3058 provides two 10 GBASE-KR ports and x8 Gen3 PCI Express lanes to the backplane. System designs may include a 10 GbE switch and a PCIe switch with single-star data planes. Kontron VxFabric™ extends TCP/IP over PCIe to increase I/O bandwidth and enable multi-CPU node architectures. Front-panel and backplane I/O include USB 2.0/3.0, configurable Gigabit Ethernet, HDMI option via front-I/O and M.2 mezzanine, serial interfaces (RJ-11), SATA 6 Gb/s links and multiple GPIO/UART lines.

Long term programs
Kontron offers Long Term Supply (LTS) programs and optional Health Management to facilitate field maintenance. Intel silicon reliability is communicated as 10 years, making VX3058 suitable for extended lifecycle and mission-critical programs.

Technical specifications

• Processor: Intel® Xeon® D-1500 Octa Core™, 1.6 / 1.7 GHz, TDP 35W (8 cores, 16 threads)
• Cache: 12 MB
• Memory: Up to 32 GB dual-channel DDR4 2133 MT/s, ECC, soldered
• I/O (summary): Front panel 1x USB2.0, optional HDMI front-I/O (exclusive with XMC), RJ-11 serial (2x EIA-232 or 1x EIA-485), LEDs, RESET; Backplane x8 PCIe Gen3 (configurable 1x8/2x4/4x2), 2x SATA 6 Gb/s (P1) + 2x SATA 6 Gb/s (P2), USB 2.0/3.0, two 10GBASE-KR (or 1000BASE-KX) on P1, additional 1000BASE-T on P1/P2 (front/rear switchable), UART and GPIO signals
• Expansion slots: XMC
• Storage: M.2 slot (boot SSD e.g. 60 GB SATA)
• Cooling: VITA 47 air-cooled (0°C to +55°C) and conduction-cooled CC-4 (-40°C to +85°C) options
