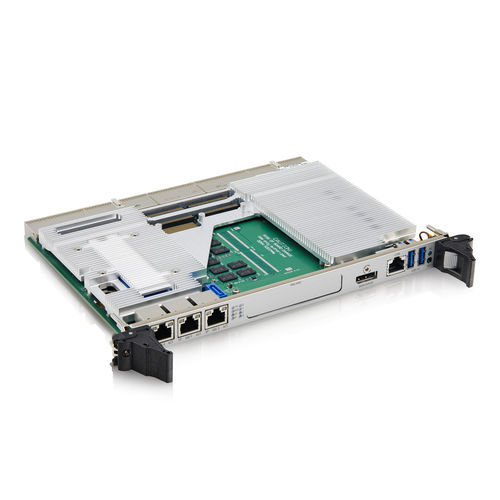

Ethernet CompactPCI card CP6007-RA

with Ethernet interfaceserialwith serial interface

Overview
The rugged air-cooled successor of CP6004-RA. General computing in harsh environments with the rugged/VITA47 qualified CP6007-RA provides up-to-date technology while maintaining backward compatibility with earlier Kontron blades such as CP6004-RA. CP6007 is well suited for advanced multi-CPU server applications built as virtual machines, supporting future-proof investment by virtualization. CP6007-RA is based on a six-core Intel® Xeon® processor (10nm technology) delivering outstanding performance-per-watt and a scalable power budget. 32GB soldered memory with ECC is provided.

Key highlights

• For long term programs in harsh environments
• 11th Gen Intel® Xeon® W-11555MRE 2.1 GHz six-core CPU
• Proven CompactPCI (PICMG 2.16) ecosystem and VITA47 rugged qualification
• European design and production; long-term availability

Extensions and I/O
Prepared to operate with onboard industrial-grade M.2 flash devices (NVMe or SATA) and with 2.5" SATA hard disks or SSDs via rear-I/O module or HDD carrier kit. Features an XMC site supporting x8 PCI Express, alternatively a PMC site. Kontron rear I/O module series is fully functional with CP6007-RA.

Technical data
Processor: Intel® Xeon® W-11555MRE, 6 core, 12 MByte cache, 2.1 GHz, 35 W cTDP
Main Memory: 32 GByte soldered RAM with ECC, up to 3200 MHz
SATA: Four ports to rear I/O (SATA 3Gb/s), one onboard SATA 6Gb/s connector, M.2 2280 mounting option (SATA 6Gb/s)
Serial: COM1 (RS232) routed to front panel and rear I/O; COM2 (RS232/RS422) routed to rear I/O only
Rear I/O: J3: 2x ETH according to PICMG 2.16, 2x ETH, VGA, COM1/2, 4x USB, GPIO, fan sense; J4: PMC rear I/O; J5: 4x SATA, 2x DVI/HDMI, battery, fan control, additional GPIO

Use cases & benefits
Designed for defense and industrial outdoor facilities. Suitable for 19" rackmount multi-CPU servers in defense and industrial environments, virtualization applications, and IPMI-enabled systems. The CompactPCI ecosystem and Kontron support make CP6007-RA a reliable choice for long-term programs.

Caractéristiques / spécifications techniques

• Model: CP6007-RA
• Form factor: VITA47 Rugged CompactPCI (PICMG2.16) Blade
• Processor: Intel® Xeon® W-11555MRE, 6 cores, 12 MB cache, 2.1 GHz, 35 W cTDP
• Memory: 32 GB soldered ECC RAM, up to 3200 MHz
• Storage interfaces: 4x SATA to rear I/O (SATA 3Gb/s), 1x onboard SATA 6Gb/s, M.2 2280 mounting (SATA 6Gb/s), supports 2.5" SATA HDD/SSD via rear I/O or HDD carrier kit
• Mezzanine: XMC site (x8 PCIe) or alternative PMC site
• Rear I/O connectors: J3, J4, J5 with Ethernet, VGA, COM, USB, GPIO, SATA, DVI/HDMI, battery, fan control
• Serial: COM1 front & rear (RS232), COM2 rear (RS232/RS422)
• Cooling: air-cooled, VITA47 rugged qualified
• Target applications: rugged defense and industrial environments, virtualization and multi-CPU server applications
• Manufacturing: European design and production; long-term availability
