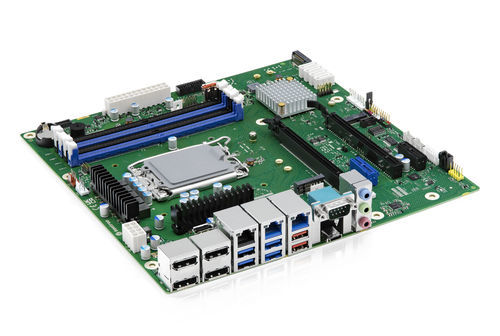

Micro-ATX motherboard K3841-Q

Intel® Celeron®Intel® PentiumIntel® Core™

Product Information

The industrial motherboard K3841-Q µATX is built on the Intel® Q670E chipset and supports Intel® Core™ processors (12th/13th/14th Gen./Series 2), Intel® Pentium® and Intel® Celeron® series. Engineered for continuous 24/7 operation with an extended operating temperature range up to 60°C. Includes iAMT-based out-of-band management and provides TSN and realtime (TCC) support for targeted industrial applications.

Highlights

• DDR5 memory support via 4x DIMM sockets (DDR5-4800) for improved system throughput
• Intel® UHD Graphics 7xx driven by Xe architecture (processor dependent)
• Triple LAN (1GbE / 2.5GbE) with teaming and TSN support
• Dual M.2 Key-M SSD sockets and one M.2 Key-E WLAN socket onboard
• USB 3.2 Gen 2 including Type-C, 4x COM ports, GPIO for industrial I/O

Benefits of Kontron motherboards

• German engineering and production standards
• Strict lifecycle management and long-term product maintenance
• Comprehensive feature set and development tools
• Technical support adapted to industrial deployments
• Optimised total cost of ownership for system integrators

Technical data (table)
Processor | Intel® Core™ Processors (12th/13th/14th Gen./Series 2); Intel® Pentium® / Intel® Celeron® processor series
Chipset | Intel® Q670E Chipset
Main Memory | 4x DDR5-4800 DIMM sockets, up to 192 GB, Dual Channel, non-ECC
Graphics Controller | Intel® UHD Graphics 7xx (depends on installed processor)
Display | 4x DP 1.4a

Specifications

• Model / Denomination: K3841-Q µATX
• Form factor: µATX
• Chipset: Intel® Q670E
• Supported processors: Intel® Core™ (12th/13th/14th Gen./Series 2), Intel® Pentium®, Intel® Celeron®
• Memory: 4x DDR5-4800 DIMM sockets, up to 192 GB, Dual Channel, non-ECC
• Graphics: Intel® UHD Graphics 7xx (processor dependent)
• Display outputs: 4x DP 1.4a
• LAN: Triple LAN (1GbE / 2.5GbE) with Teaming and TSN support
• Storage & expansion: Dual M.2 Key-M SSD sockets; M.2 Key-E WLAN socket
• I/O: USB 3.2 Gen 2 including Type-C, 4x COM ports, GPIO
• Management: iAMT-based Out-of-Band Management
• Operational readiness: Designed for 24/7 operation, extended temperature range up to 60°C
