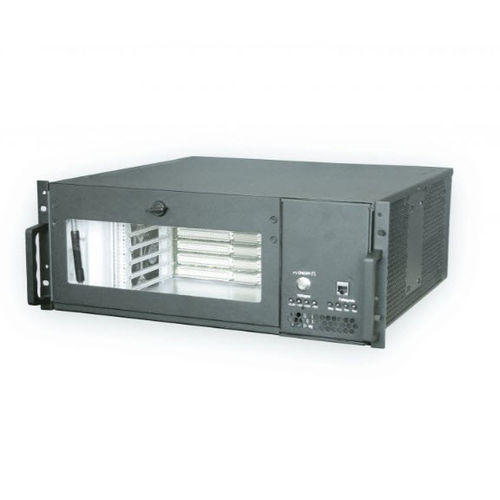

Rack-mount chassis R4U8S

19"4U6U

Overview
The R4U8S is a 19-inch 4U rack-mount industrial chassis designed to host eight 6U boards (VME or CompactPCI). It features a modular architecture, a front door for electronics protection, a modular PSU bay enabling redundant or higher-power units, and has passed mechanical, thermal and EMC/EMI qualification tests for industrial, airborne and naval applications.

Highlights

• 19-inch 4U rack
• 8-slot 6U cardcage (VME or cPCI)
• 80 mm VITA 36 rear I/O bay
• Backplane support: VITA31, VITA38
• Front-to-rear cable management

Technical specifications

• Form factor: 19" rack, 4U height
• Card slots: 8 slots for 6U boards (VME or cPCI)
• Rear I/O bay: 80 mm, VITA 36 compliant
• Backplane: supports VITA31 and VITA38
• Cable routing: front-to-rear cable way
• Protection: front door to protect internal electronics
• Power supply: modular PSU bay supporting alternative, redundant or higher-power PSUs
• Qualifications: passed mechanical, thermal and EMC/EMI tests
