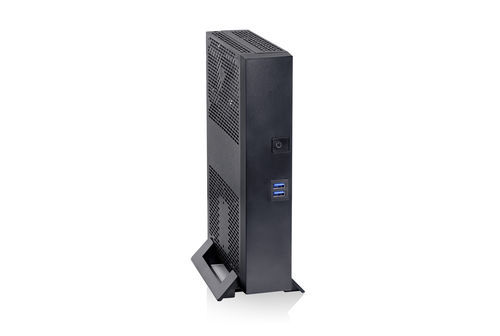

Wall-mounted PC chassis SMARTCASE™ S730

benchtopminicompact

Product information
The SMARTCASE™ S730 is an industrial mITX enclosure designed for the D3713-V/R and D3723-R motherboard family (AMD Ryzen™ Embedded V/R1000 & R2000) and the K3931-N (Intel Alder Lake N). The enclosure features a compact, clean design with a dual front USB 3.2 Gen1 connector. It supports passive (fanless) or active (with fan) cooling and accepts a wide range DC input for versatile deployment. The S730 can be mounted horizontally or vertically and offers an option for an internal 65W PSU module.

Product highlights

• Compact design with dual front USB 3.2 Gen1
• Dimensions: 250 x 52 x 191 mm
• Low-profile expansion slot
• Optional internal 65W PSU module
• Horizontal and vertical stand plus wall-mount bracket

Technical data (table)
Dimensions (W x H x D): 250 x 52 x 191 mm (W x H x D)
Colour: black
Weight: ≈ 1 kg
Operating Temperature: Passive heatsink (fanless; D3713-V/R or D3723-R): -10 °C ... +35 °C (max. 15 W TDP, vertical/horizontal position) *) -10 °C ... +40 °C (max. 12 W TDP, vertical position only) *) Passive heatsink (fanless; K3931-N): -10 °C ... +40 °C (max. 15 W TDP, horizontal position) *) -10 °C ... +45 °C (max. 15 W TDP, vertical position) *) Active heatsink (with Fan): -10 °C ... +45 °C (max. 35 W TDP, vertical/horizontal position) *)
Humidity: 5 % - 85 % relative humidity (non-condensing)

Features / technical specifications

• Model compatibility: D3713-V/R, D3723-R and K3931-N mITX motherboards
• Supported processors: AMD Ryzen™ Embedded V/R1000 & R2000 series; Intel Alder Lake N (K3931-N)
• Front I/O: Dual front USB 3.2 Gen1 connector
• Cooling options: passive (fanless) or active (with fan); operating temperature and maximum TDP vary by configuration and orientation (see technical data)
• Power input: Wide range DC-in 8 - 34 V
• Optional internal 65W PSU module
• Mounting options: horizontal and vertical stand, wall-mount bracket
• Expansion: Low profile extension slot
• Dimensions: 250 x 52 x 191 mm
• Weight: approximately 1 kg
• Colour: black
• Humidity tolerance: 5% - 85% relative humidity (non-condensing)
