Size-S computer-on-module OSM-S i.MX8M Mini

ARM Cortex-M4ARM® Cortex A53NXP i.MX8M

Product Information

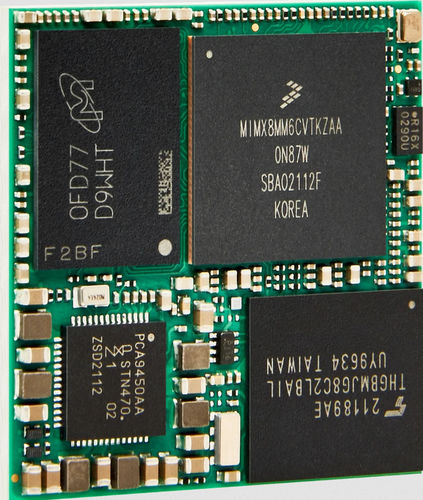

The OSM-S i.MX8M Mini from Kontron Electronics is a compact System-on-Module (SoM) compliant with the OSM standard. As a directly solderable module without connectors it supports automated, cost-efficient assembly in a 30 x 30 mm OSM Size-S form factor.

Performance & Architecture
The module integrates an NXP i.MX8M Mini CPU with 4x Arm® Cortex®-A53 cores @1.6 GHz and 1x Arm® Cortex®-M4 @400 MHz. Integrated 2D and 3D GPUs provide hardware-accelerated graphics and smooth HMI rendering, while the multi-core architecture enables parallel processing for compute- and image-intensive embedded applications.

Communication Interfaces
The OSM-S offers a wide set of interfaces: digital I/Os, serial ports, PWM, two SDIO connectors, 1x Gigabit Ethernet (RGMII), 2x USB 2.0 OTG, and bus support for I²C, SPI, UART, plus audio and display interfaces for multimedia and HMI integration.

Applications & Advantages
Designed for space- and power-constrained embedded projects, the module combines energy-efficient Arm® processing with integrated graphics and flexible I/O to accelerate development and customization. The OSM standard and direct-solder design reduce PCB cost and streamline automated production.

Product Highlights

• 4x Arm® Cortex®-A53 @ 1.6 GHz and 1x Arm® Cortex®-M4 @ 400 MHz
• Integrated 2D and 3D GPU
• LPDDR4 up to 4 GByte; eMMC up to 128 GByte
• 1x 1 Gbit/s Ethernet (RGMII)
• OSM Size-S form factor 30 x 30 mm, directly solderable

Technical data

• CPU: NXP i.MX8M Mini (4x Arm® Cortex®-A53 @1.6 GHz + 1x Arm® Cortex®-M4 @400 MHz)
• Memory: LPDDR4 standard 4 GByte (options 1/2 GByte)
• Storage: eMMC standard 32 GByte (options 4–128 GByte); NOR Flash 2 MByte; EEPROM 8 kB (64 kb)
• Network & Interfaces: 1x GbE, 2x USB 2.0 OTG, 2x SDIO, 4x UART, 2x I²C, 2x SPI, 24x GPIO, 3x PWM, PCIe, SAI
• Display/Camera: MIPI DSI (4-lane) up to 1920x1080@60fps; MIPI CSI (4-lane)
• Power & Env.: 5 V DC ±5%; IO voltage 1.8 V (option 3.3 V); Linux typical < 1 W, max < 3.5 W; operating -25 °C to +85 °C
• Security & OS: HAB Secure Boot, TrustZone, TRNG, RSA, AES, SHA; Embedded Linux (Yocto)
• Mechanical: OSM Size-S 30 x 30 mm; 332-pin footprint (RM 1.25 mm)
