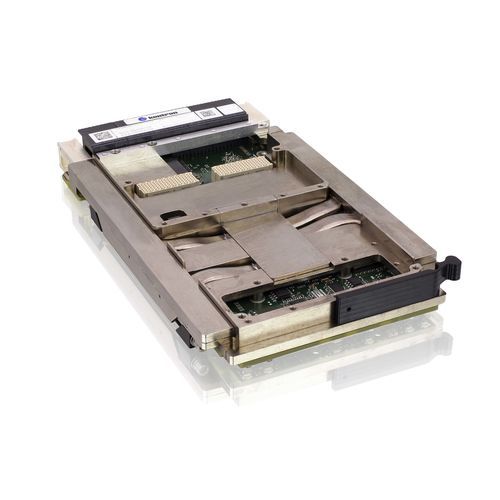

VPX single-board computer VX3060-S2

Intel Core i7-1185GREM.2USB 3.0

Overview
The VX3060-S2 is a 3U VPX single-board computer based on 10nm Intel® SoC technology. It integrates a selected Intel® Core™ i7-1185GRE CPU SKU (4-core/8-thread) with configurable TDP 12–28 W and an Intel Xe GPU with 96 execution units, providing CPU, AI (VNNI) and DSP (AVX-512) capabilities for rugged embedded applications. The selected CPU SKU is qualified for 10 years of operation under 100% active usage profiles. The board is offered in two main I/O variants: three rear 1000Base-T ports for backward compatibility or a variant with dual 10GBase-KR.

Key features

• Intel® Core™ i7-1185GRE, 4-core/8-thread, TDP 12–28 W
• Integrated Intel Xe GPU with 96 EUs (Gen12), OpenCL support for GPGPU
• AI and signal processing: VNNI, AVX-512
• Memory: 32 GB DDR4 dual channel with IECC
• Flexible networking: multi-port 1G/10G with 2.5G, 25G and TSN capability; variants with 3× rear BaseT or dual 10GBase-KR

Technical specifications

• Cache: 12 MByte
• Storage: 256 GB SATA SSD (M.2)
• Expansion: XMC option; X4 PCIe Gen3 data and expansion planes
• I/O: USB-C, USB3.0, USB2.0, DP++ 1.2, dual serial, 4 GPIOs, XMC I/Os, SMB/IPMB, JTAG
• Backplane compatibility: VITA65 OpenVPX slot/module profiles (SLT3-PAY-2F2U-14.2.3, SLT3-PAY-1F1F2U-14.2.4, SLT3-PAY-1F1U-14.2.10)

Ruggedization & cooling
Available in VITA 47 air-cooled (0/+55°C) and conduction-cooled CC-4 (-40/+85°C) variants to match deployment thermal requirements.

Compliance & availability
Pin assignment compatible with the specified OpenVPX profiles and suitable for system architectures developed in alignment with the SOSA™ Technical Standard. Selected CPU SKU guaranteed for 10 years; platform availability and long-term support options are provided.
