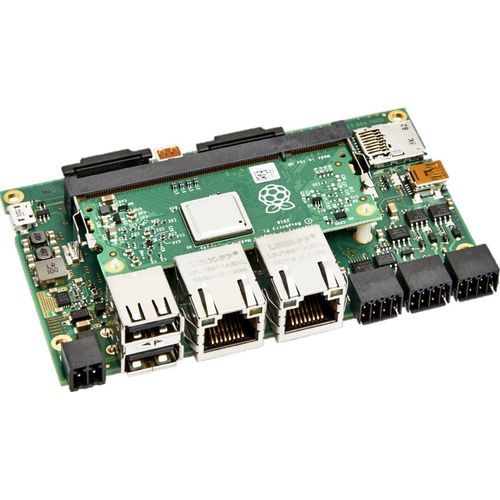

BTX single-board computer BL Pi-Tron CM3+

Arm® Cortex®-A53 Quad-coremicro SD cardLinux

Overview
The BL Pi-Tron CM3+ from Kontron Electronics is an industrial control baseboard based on the Raspberry Pi Compute Module CM3+ and optimized for integration with CODESYS (IEC 61131-3). Open interfaces and modern security functions enable secure data exchange in IIoT and Industry 4.0 environments, while the platform supports long-term maintainability via the Raspberry Pi community.

Performance & Architecture
Powered by a Broadcom BCM2837B0 (4x ARM® Cortex®-A53 @ 1.2 GHz), the board provides 1 GB LPDDR2 RAM, optional up to 32 GB eMMC, 2 kB FRAM and a 3D video engine. The modular architecture enables scaling from prototype to series production and supports integration of multifunction I/O modules for complex automation tasks.

Communication Interfaces
A comprehensive set of industrial interfaces enables use as gateway, data logger or HMI controller. Available connections include Ethernet, USB, multiple serial buses, CAN and extensive GPIO with support for UART, I2C, SPI and PWM. Robust signalling and isolated I/Os ensure reliable operation in industrial environments.

Application Areas & Advantages
The BL Pi-Tron CM3+ is suitable for human-machine interfaces (HMI), industrial communication, M2M, building and home automation, POS terminals, infotainment and mobile embedded systems. Rapid prototyping, open-source software compatibility and CODESYS support reduce development time and allow cost-effective series implementations. Custom board adaptations are available to optimize space and production costs.

Highlights

• Broadcom BCM2837B0, 4x ARM® Cortex®-A53 @ 1.2 GHz
• 1 GB LPDDR2 RAM
• Up to 32 GB eMMC (optional)
• FRAM 2 kB (16 kbit)
• Integrated 3D video engine
• CODESYS integration for PLC development (IEC 61131-3)
• Open interfaces and modern security features for IIoT

Technical data
CPU: Broadcom BCM2837B0 — 4x ARM® Cortex®-A53 @ 1.2 GHz, 3D Video Engine
LPDDR2 RAM: 1 GB
eMMC: up to 32 GB optional; Lite variant 8 GB (note: eMMC versions do not include microSD slot)
SD CARD: Compute Module CM3+ Lite — 1x microSD slot for OS
FRAM: 2 kB
Ethernet: 2x 10/100 Mbit/s
USB: 2x USB 2.0 Host
I/Os: 28x GPIO; up to 2x UART, 2x I2C, 2x SPI, 2x PWM, 1x SDIO (4-bit)
DIO: 4x (24 V / up to 800 mA)
Serial: 1x RS232, 1x RS485
CAN: 1x CAN 2.0B
Display: 1x DSI 2-lane; 1x Micro-HDMI 1.3a (up to 1080p @30fps)
Touch: I²C
Camera: 1x CSI 2-lane (MIPI)
Power supply: 24 V DC ±20%
Power consumption: 3.4 W … 9.6 W (without peripherals)
Operating temperature: 0 °C … +55 °C (non-condensing)
OS: Raspbian Linux (not preinstalled)
Form factor: 105.5 x 67 mm
RTC: on baseboard (CR1220)
Debug: 1x console
Expansion: Raspberry Pi 40-pin GPIO header

Characteristics / Technical specifications

• Model: BL Pi-Tron CM3+
• CPU: Broadcom BCM2837B0, 4x ARM® Cortex®-A53 @1.2 GHz with 3D Video Engine
• RAM: 1 GB LPDDR2
• eMMC: up to 32 GB optional; Lite 8 GB (variant-dependent)
• SD support: Compute Module CM3+ Lite with 1x microSD slot for OS
• FRAM: 2 kB (16 kbit)
• Software / Ecosystem: Supported by Raspberry Pi community; compatible with Raspbian
• Development: Optimized for CODESYS (IEC 61131-3)
• Applications: HMI, industrial communication, M2M, building automation, POS, infotainment, mobile systems
• Industrial readiness: Open interfaces, security features, robust connectivity
• Mechanical / thermal: Industrial design with integrated cooling and robust housing
