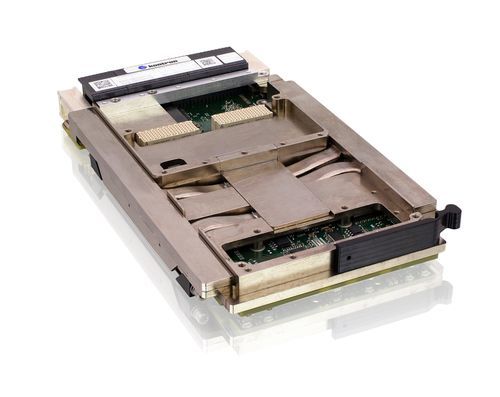

VPX single-board computer VX3060

quad-core11th Generation Intel® Core™Intel Core i7-1185GRE

Overview
The VX3060 is a 3U VPX single-board computer built on Intel's 10nm SoC family and selected CPU SKUs guaranteed for 10 years of operation under 100% active usage. It provides configurable low-power operation, dedicated instructions for AI (VNNI), enhanced signal processing (AVX-512) and an integrated Intel Xe Gen12 GPU with 96 execution units supporting GPGPU workloads via OpenCL.

Highlights

• 12–28 W quad-core Intel® Core™ i7-1185GRE with VNNI and AVX-512, up to 32 GB ECC memory
• Integrated Intel Xe Gen12 GPU (96 EUs) with 8K multi-head display support
• Flexible I/O: USB-C, multiple M.2 sockets, XMC expansion option
• Multi-port Ethernet (1G/10G) with 2.5G, 25G and TSN capability; variant options for 3× rear BaseT or dual 10GBaseKR
• SYSGO PikeOS BSP available

Product information
The VX3060 is offered in two main ruggedisation variants to match different deployment and backplane requirements. One variant preserves backward compatibility with previous-generation architectures using three rear Ethernet BaseT, while the other provides a high-bandwidth dual 10GBaseKR interface. The module follows VITA65 OpenVPX pin assignments and supports SLT3-PAY profiles for straightforward backplane integration.

Technical data
Processor: Intel® Core™ i7-1185GRE, 4-core/8 threads, configurable TDP 12–28 W
Cache: 12 MByte
DRAM DDR4: 16 GByte dual-channel DDR4 SDRAM with IECC (expandable to 32 GByte)
Graphics: Integrated Intel Xe Gen12 with 96 EUs
Expansion: XMC slot; multiple M.2 sockets; USB-C
Backplanes: Compatible with SLT3-PAY-2F2U-14.2.3, SLT3-PAY-1F1F2U-14.2.4 and SLT3-PAY-1F1F2U1TU1T1U1T-14.2.16 profiles

Specifications

• CPU: Intel® Core™ i7-1185GRE, 4 cores / 8 threads, configurable TDP 12–28 W
• Cache: 12 MByte
• Memory: 16 GByte dual-channel DDR4 SDRAM with IECC (expandable to 32 GByte)
• Graphics: Integrated Intel Xe graphics (Gen12) with 96 EUs
• I/O options: USB-C, M.2 sockets, XMC option
• Ethernet: Multi-port 1G/10G with support for 2.5G, 25G and TSN; variants with three rear ETH BaseT or dual 10GBaseKR
• Ruggedization: Multiple ruggedisation levels and compatibility with VITA65 OpenVPX pin assignments
• Expansion: XMC slot
• Backplane profiles supported: SLT3-PAY-2F2U-14.2.3; SLT3-PAY-1F1F2U-14.2.4; SLT3-PAY-1F1F2U1TU1T1U1T-14.2.16
• Software: SYSGO PikeOS BSP available
