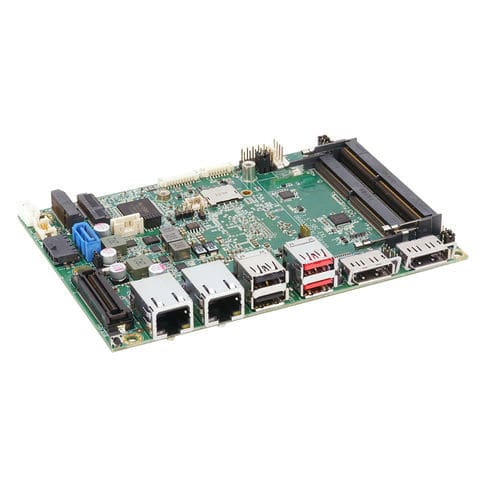

3.5" single-board computer 3.5"-SBC-EKL series

Intel® Atom™ x6425REIntel® Atom™ x6211EIntel® Celeron® J6412

The 3.5"-SBC-EKL is a high-performance single board computer powered by Intel Atom® x6000E Series, Celeron® J6000 / N6000 Series, and Pentium® J6000 / N6000 Series processors. It offers significant improvements in graphics performance and features 2.5 GbE with TSN (Time Sensitive Networking) capability and enhanced TPM 2.0 security/encryption support. This makes it ideal for various IoT applications, including industrial automation, retail, smart city, and healthcare. Key Features: - 2x DP, 1x LVDS for video output - 2x 2.5 GbE LAN for Ethernet - 2x USB 3.2 Gen 2, 6x USB 2.0, 2x RS232/422/485, 2x CAN Bus, 8x DIO for peripherals - 1x SATA 3.0, 1x M.2 Key B, 1x M.2 Key E, 1x M.2 Key M for storage & expansion - 1x B2B Connector for extended I/Os: 2x PCIe x2, SM Bus, I2C, UART, GSPI & DDI (optional) Technical Specifications: - Processor: Intel® Atom® x6211E, x6212RE, x6425RE; Intel® Celeron® J6413 - Main Memory: 2x DDR4 3200 SO-DIMM up to 32 GByte - Graphics: Intel® UHD Graphics for 10th Gen Intel® Processors - Display: 1x LVDS, 2x DP, Triple Display - Audio: TSI 92HD73C, 1x Speaker-out, 1x Line-in, 1x Line-out, 1x Mic-in - Ethernet: 2x 2.5 GbE LAN - USB: 2x USB 3.2 Gen 2, 6x USB 2.0 - Serial: 2x RS232/422/485 - I/Os: 8x DIO, 2x CAN bus, 1x GP-SPI, 1x I2C - SATA: 1x SATA 3.0 - Expansion: 1x M.2 Key B, 1x M.2 Key E, 1x M.2 Key M, 1x SIM Card Holder, 1x B2B Connector - Input Voltage: DC 12 V - Power connector: 1x4-pin pitch 3.0 mm Wafer - BIOS: AMI uEFI BIOS w/ 256 Mb SPI Flash - Watchdog: Programmable WDT - System Monitoring: Voltages, Temperatures - RTC: SoC integrated - Security: TPM 2.0 - Cooling: Passive - OS: Windows 10, Linux - Form Factor: ECX (146 mm x 105 mm) - Operating Temperature: 0 °C ~ 60 °C (Standard), -40 °C ~ 85 °C (Extreme) - Humidity: 0 % ~ 95 % - Compliance: CE, FCC, ICES, UKCA, UR, CSA
