Digital I/O card 3.5"-eIO-GPA-2-XTEthernetserial3.5"
Add to favorites
Compare this product
Characteristics
- Signal type
- digital
- Interface
- Ethernet, serial
- Bus standard
- 3.5"
- Mounting
- board-mount
Description

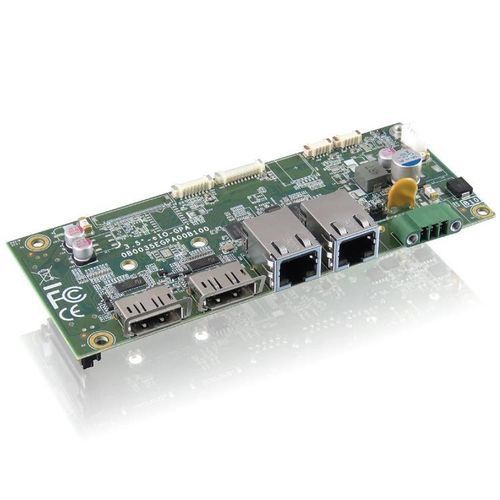

The 3.5"-eIO-GPA-2-XT is an extended I/O board designed for Kontron 3.5"-SBC Series products, enhancing system integration with minimal effort and investment in I/O extension.
- 2x DisplayPort (DP), 2x 2.5 GbE LAN, 1x DC In Terminal Block on rear I/O panel
- 1x UART, 1x I2C, 1x SMBus, 1x GSPI onboard
- Operating temperature: -40 °C to 85 °C
- Intel® I226-IT Ethernet Controller
Technical Specifications / Features:
- Form factor: 3.5" Extended I/O Board
- 2x DisplayPort (DP)
- 2x 2.5 Gigabit Ethernet LAN ports
- 1x UART interface
- 1x I2C interface
- 1x SMBus interface
- 1x GSPI interface
- 1x DC In Terminal Block (rear I/O panel)
- Operating temperature range: -40 °C to 85 °C
- Designed for Kontron 3.5"-SBC Series
