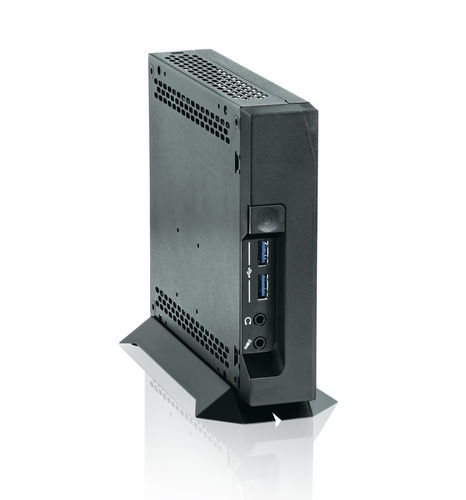

Wall-mounted PC chassis SMARTCASE™ S500

compactindustrialUSB

Denomination Chassis kit solution for D3544-S mSTX

Highlights

• Ultra-compact design
• 36 × 147 × 165 mm (W × H × D)
• Front and rear USB
• Horizontal or vertical operation
• VESA and wall-mount option
• Supports up to 2 × 4K displays

Product information The SMARTCASE™ S500 is a chassis kit for industrial D3544-S series Mini-STX motherboards. It is intended for low-power Intel® Celeron® and Pentium® processors and allows connection of up to two 4K displays. The housing has an overall height of 36 mm and a volume of 0.87 litres, enabling compact installations in horizontal or vertical orientation. Front and rear USB ports are accessible for peripheral integration. Mounting options include VESA and wall mounting to suit various installation environments.

Technical data Dimensions (W × H × D): 36 × 147 × 165 mm
Colour: black
Weight: ≈ 0.4 kg
Operating temperature (passive heatsink, fanless): 0 °C – 40 °C*
Operating temperature (active heatsink, with fan): 0 °C – 50 °C*
Humidity: 5 % – 85 % relative humidity (non-condensing)

Specifications

• Dimensions (W × H × D): 36 × 147 × 165 mm
• Overall height: 36 mm
• Housing volume: 0.87 litres
• Colour: black
• Weight: ≈ 0.4 kg
• Display support: up to 2 × 4K displays
• Processor support: low-power Intel® Celeron® and Pentium® processors (D3544-S series)
• Operation modes: horizontal or vertical
• Mounting options: VESA and wall mount
• Operating temperature (passive): 0 °C – 40 °C
• Operating temperature (active): 0 °C – 50 °C
• Humidity: 5 % – 85 % relative humidity (non-condensing)
• Front and rear USB ports
