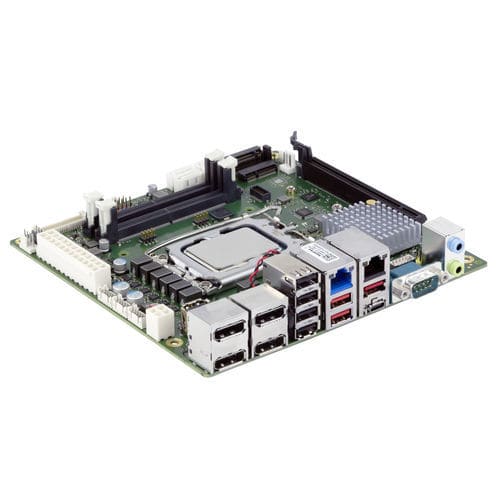

Mini-ITX motherboard K3836 series

Intel® Core i seriesIntel® PentiumIntel® Q670E

Industrial Motherboard supporting Intel® Core™ Processors (14th Gen/Series 2) - Latest DDR5 memory technology for best-in-class system performance - Intel® UHD Graphics 7xx driven by Xe Architecture; DisplayPort™, eDP-, and LVDS- support - Dual LAN 1GbE/2.5GbE incl. Teaming and TSN support - M.2 Key-M & Key-E; Powerful USB 3.2 Gen2 - Combined ATX Standard PSU or Single 12V Supply The K3836 mITX motherboard is the successor to the prosperous D3633-S. It combines the proven functionality of its popular forerunner with the latest Intel® Core™ processor generation and latest standards. Developed and produced in Germany, this motherboard offers two configuration options: The K3836-R is equipped with the high-performance Intel® R680E chipset with ECC support for mission-critical applications. The K3836-Q has the equally powerful Q670 chipset onboard. Unleash unparalleled connectivity with the K3836, featuring 2x Intel® LAN (1x 2.5 GbE), PCIe x16 Gen5, multiple USB ports, M.2 or Display Ports supporting graphics up to 8K resolutions and much more. It is particularly reliable thanks to 24/7 continuous operation at temperatures up to 60° C. Therefore, it can be used for various applications in the fields of industry, medicine, infotainment and more. Benefits of Kontron motherboards: - Highest quality through German engineering and production - Strict lifecycle management and reliable product maintenance - Comprehensive feature and tool set - Excellent technical support - Beneficial total-cost-of-ownership Features - Processor: Intel® Core™ processors (12th/13th/14th Gen/Series 2), Intel® Pentium®/Intel® Celeron® processor series - Chipset: K3836-Q: Intel® Q670; K3836-R: Intel® R680E - Main Memory: 2x DDR5-4800/5600 SODIMM Sockets, max. 96 Gbyte, Dual Channel unbuffered; ECC supported by K3836-R with R680E - Graphics Controller: Intel® UHD Graphics 7xx driven by Xe Architecture - Display: 4x DisplayPort v1.4a up to 8K; 1x embedded DisplayPort v1.4b @4K; 1x Dual Channel LVDS (24bit) - Audio Controller: Realtek ALC256 - Audio: Stereo, High Definition Audio Codec - Ethernet: 1x Intel® i219LM with 10/100/1000 Mbit/s, iAMT features; 1x Intel® i226LM with 10/100/1000/2500 Mbit/s - USB: 5x USB 3.2 Gen2 (2x Key-B header); 1x USB 3.2 Gen2 (Type-C); 6x USB 2.0 (2x by header); 1x USB 2.0 stick socket - Serial: 1x RS232/422/485; 3x RS232 (1x rear I/O, 3x by headers) - Available I/Os: 8 Bit GPIO (Input/Output); WLAN LED support, WLAN enable/disable support - SATA: 4x SATA III 600 Interface (up to 6GBit/s), NCQ, AHCI - Expansion: 1x M.2 2242/2280 (Key-M, PCIe/NVME SSD modules); 1x M.2 2230 (Key-E, WLAN/Bluetooth modules, PCIe + USB); PCIe x16: 1x 16 lanes, Gen5, Support for lane split (x16 or x8 + x8) - Power connector: 24-pin ATX socket plus 4-pin socket for CPU - Input Voltage: Dual supply option: Single 12 V PSU ("DC In") or Standard ATX Multirail PSU - BIOS: AMI Aptio 5.x (UEFI) BIOS - Watchdog: BIOS POST-/BIOS BOOT-/OS-HW Watchdog - Real Time Clock: integrated - Cooling: 2x PWM fan (CPU/System) - Operating System: MS Windows 10, MS Windows 11, MS Windows 10 IoT, Linux-64; No legacy OS support, no MBR installation (UEFI only) - Mechanical Dimensions: Mini-ITX: 6.7" x 6.7" (170 x 170 mm) - Operating Temperature: 0°C-60°C - Humidity: 5%-85% - Certifications: Planned: cTÜVus acc. IEC62368-1, CE Class B incl. Industrial Immunity, UKCA, FCC-B verified
