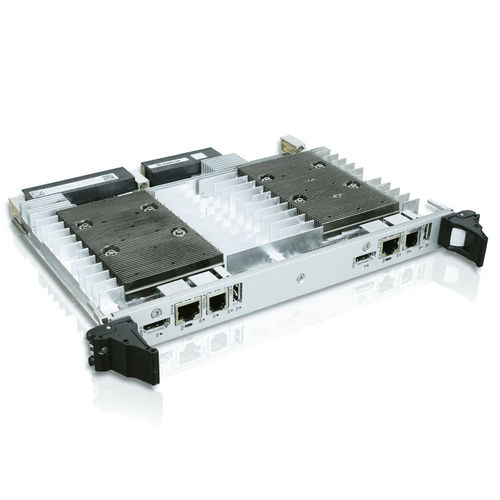

VPX single-board computer VX6090

Intel® XeonM.2GbE

Overview
Kontron VX6090 is a high-performance 6U VPX Single Board Computer (SBC) designed for demanding embedded deployments. Based on Intel® Xeon® D server-class SoCs (8- or 12-core options), the VX6090 delivers dense processing, rich standard-based communications and flexible I/O for SWaP‑constrained missions, imaging, radar signal streaming and embedded server-type applications.

Key highlights

• Dual 12-core Xeon® D 64-bit SoC option at 2.1 GHz
• 16 GB DDR4 memory with ECC per SoC soldered on PCB
• Connectivity: 4x 10 GbE and multiple 1 GbE ports
• M.2 SATA III SSD sockets for storage expansion
• 2-D graphics interface (SM750) and VITA-compliant backplane support

Technical data (table)
CPU: Fifth Generation Intel® Xeon® D Octo Core, 45W, 2.0 GHz (8 execution cores, 16 threads, 12 MB)
Graphics Controller: 2-D SM750 graphics controllers
Backplanes: VITA65 payload slot profile SLT6-PAY-2F2U2T-10.2.5
Form Factor: VITA 48.1 type 2 (6U VPX)

Features / Technical specifications

• Processor options: Intel® Xeon® D family — configurable 8-core (Octo Core) and 12-core variants
• Memory: 16 GB DDR4 with ECC per SoC, soldered on PCB
• Ethernet connectivity: 4x 10 GbE and multiple 1 GbE ports for high-throughput networking
• Storage: M.2 SATA III SSD sockets for on-board storage
• Graphics: 2-D graphics interface; SM750 graphics controller
• Backplane support: VITA65 payload slot profile SLT6-PAY-2F2U2T-10.2.5
• Form factor: VITA 48.1 type 2 (6U VPX)
• Target applications: imaging, radar signal processing, embedded server tasks and other SWaP-constrained real-time/near-real-time deployments
