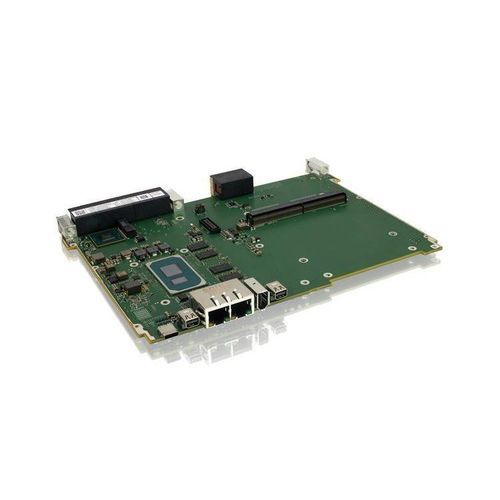

VPX system-on-module VX6011-S-SA4F-000F121V1P

11th Generation Intel® Core™Intel Core i7-1185GREDisplayPort

SOSA-aligned 11th Generation Intel Core Processor 6U VPX SBC - 11th Gen Intel® Core™ processor for AI (Artificial Intelligence), CVGIP (Computer Vision, Graphics, and Image Processing), DSP (Digital Signal Processing) workloads - 12-28 W Quad Core™ processor, Enhanced AI, AVX-512, 32 GByte w ECC - 8k Multi-Head display from Gen12 / 96 EUs high End GPU - Versatile I/O: USB-C, M.2 sockets, XMC option - 1G/10G Ethernet Multi-port with 2.5G, 25G and TSN capability - 15-year availability, PBIT, CBIT, SEC-Line support Developed in alignment with the SOSA™ Technical Standard. The 10nm gen Intel® System On Chip (SOC) SKUs delivers an unmatched feature set in a low power envelope enabling a solid foundation for almost all rugged computing use cases. The VX6011-S has selected CPU SKU guaranteed for 10 years operations with 100 per cent active usage profiles. Quad core units with specialized instructions for Artificial Intelligence (VNNI) and Doubled Signal Processing performance (AVX512) will be available. The integrated Intel Xe graphics engine also adds 96 EU execution units (EU) computing power accessible to software written for GPGPUs (via OpenCL) and offers all the features expected from a modern PC platform by demanding applications. The VX6011-S pin assignment is compatible with VITA65 OpenVPX Profiles SLT6-PAY-4F1Q1H4U1T1S1S1TU2U2T1H-10.6.3-0 and can be considered for system architectures developed in alignment with the SOSA™ Technical Standard. Technical Specifications / Features: - Processor: Intel® Core™ i7-1185GRE, 4-core/8 threads, configurable TDP from 12W to 28W - Cache: 12Mbyte - DRAM DDR4: 16-32 Gbyte dual channel DDR4 SDRAM with IECC - Expansion Slots: XMC or MXM - Backplanes: SLT6-PAY-4F1Q1H4U1T1S1S1TU2U2T1H-10.6.3-0, MOD6-PAY-4F1Q1H4U1T1S1S1TU2U2T1H-12.6.3-2 - I/O Features: Dual 10GBASE-KR + dual 1000BASE-T ports, x2 PCIe Gen3 / SATAIII for storage, DP++ 1.2 Graphic port, Dual USB2.0 ports, USB3.0 port, Dual serial lines, 5 GPIOs, XMCIOs, Dual SMB/IPMB, JTAG, Power Supplies - Cooling: VITA 47 Standard air-cooled (0/+55°C) - Storage: 320GB NVMe 1.4 SSD boot storage (M.2 slot) - Frontpanel: 2x 10/100/1000Base-T(X) on RJ-45 connectors, 1x RS-232 UART interfaces on iX connector, 1x USB-C port, 1x DP++ port on mDP connector, One Reset button, Bicolor LEDS
