Mini-ITX motherboard K3832-QIntel® Celeron®Intel® PentiumIntel® Core™
Add to favorites
Compare this product
Characteristics
- Format
- mini-ITX
- Processor
- Intel® Celeron®, Intel® Pentium, Intel® Core™, 12th Generation Intel® Core™, 13th Generation Intel® Core™, 14th Generation Intel® Core™
- Chipset
- Intel® Q670E
- Memory
- DDR5 SO-DIMM, DDR5 SDRAM
- Extension slot
- M.2, M.2 Key M, M.2 Key E, PCI Express
- Socket
- LGA 1700
- Applications
- industrial
- Memory frequency
- DDR5 5600 MHz
- Connectivity
- 2.5 GbE, USB 3.2, GbE, DisplayPort
Description
Product overview

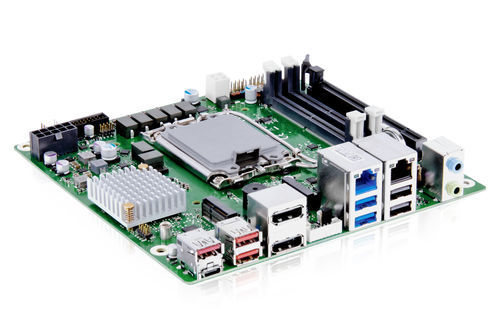

The industrial Mini-ITX motherboard K3832-Q mITX integrates the Intel® Q670E chipset and supports Intel® Core™ processors (12th/13th/14th Gen/Series 2) as well as Intel® Pentium® and Intel® Celeron® series. It provides iAMT out-of-band management, TSN and optional TCC real-time support, PCIe Gen5 and DDR5 memory support, and is rated for 24/7 operation with an extended operating temperature up to 60 °C.
Key features
Industrial benefits
Technical specifications
The industrial Mini-ITX motherboard K3832-Q mITX integrates the Intel® Q670E chipset and supports Intel® Core™ processors (12th/13th/14th Gen/Series 2) as well as Intel® Pentium® and Intel® Celeron® series. It provides iAMT out-of-band management, TSN and optional TCC real-time support, PCIe Gen5 and DDR5 memory support, and is rated for 24/7 operation with an extended operating temperature up to 60 °C.
Key features
- 2x DDR5-5600 SODIMM up to 96 GB (dual channel)
- Intel® UHD Graphics 7xx with DPP, eDP and LVDS outputs
- 2x DisplayPort 1.4a (up to 8K), 1x eDP 1.4b (4K), 1x dual-channel LVDS (Full HD)
- Dual LAN 1 GbE / 2.5 GbE with teaming and TSN support
- M.2 Key-M & Key-E slots; PCIe Gen5 support; USB 3.2 Gen2 ports
- Power options: single 12 V PSU or ATX12VO (Intel-compliant)
Industrial benefits
- Designed for continuous 24/7 operation and extended temperature range
- Long-term lifecycle support and maintenance tools for industrial deployments
- Integrated remote management (iAMT) and real-time features for automation
- Comprehensive connectivity and expansion for embedded applications
Technical specifications
- Model: K3832-Q mITX
- Form factor: Mini-ITX
- Supported processors: Intel® Core™ (12th/13th/14th Gen/Series 2), Intel® Pentium®, Intel® Celeron®
- Chipset: Intel® Q670E
- Memory: 2x DDR5-5600 SODIMM, up to 96 GB, dual channel
- Graphics: Intel® UHD Graphics 7xx (processor dependent)
- Display outputs: 2x DisplayPort 1.4a (up to 8K), 1x eDP 1.4b (4K), 1x dual-channel 24-bit LVDS (Full HD)
- LAN: Dual LAN 1 GbE / 2.5 GbE with teaming and TSN
- Storage/expansion: M.2 Key-M & Key-E; PCIe Gen5 support
- USB: USB 3.2 Gen2
- Power: single 12 V or ATX12VO (Intel-compliant)
- Management: iAMT-based out-of-band management; TCC/real-time support
- Operating: 24/7 operation; extended temperature up to 60 °C
