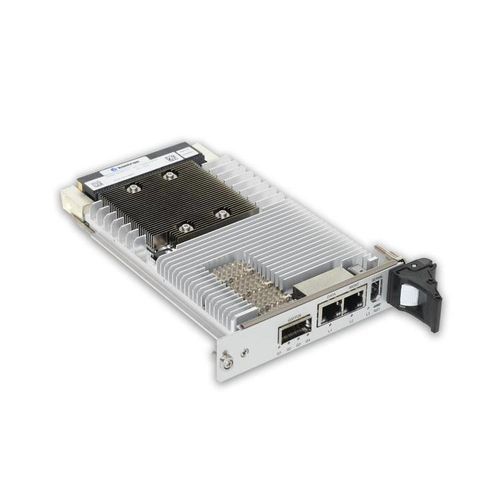

Managed ethernet switch VX3940 series

2 portlayer 2layer 3

The VX3940 is a 3U VPX Fully Managed L2/L3, 1/10/40/50 Gigabit Ethernet Switch. It is designed in alignment with the SOSA™ Technical Standard, as well as being compatible with a wide range of OpenVPX profiles and includes up to 32x 10GigE or 8x 40GigE ports (or a combination of the two). Furthermore, 4x of the 10GbE can be configured as 25GbE or 2x 50GbE links. The VX3940 is designed for long-term programs and harsh environments, for applications requiring outstanding bandwidth and communication safety. - High End L2/L3 switch developed in alignment with the SOSA™ Technical Standard - 3U Open VPX MOD3-SWH-6F1U7U/ MOD3-SWH-6F8U7 profiles - Line Rate sustained for all packet sizes - Air-Cooled - QSFP28 4x25G or 2x50G Ethernet - Conduction-Cooled: Backplane 32x10G Base-KR or 8x40G Base-KR4 - Low Power for harsh environments Technical Specifications: - Ethernet: Front Panel: 1G Base-T + QSFP28 supporting 4x25G or 2x50G; Backplane: 6x40G Base-KR and 7x10G Base-KR or 32x10G Base-KR - Cooling: VITA 47 Standard air-cooled (0/+55°C); VITA 47 Conduction-Cooled CC-4​ (-40/+85°C) - Frontpanel: 40/50Gb port on QSF28 connector; Dual 1000BASE-T ports on RJ45 connectors; Serial line on iX connector
