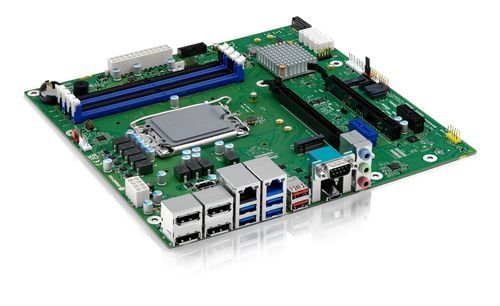

Micro-ATX motherboard K3842-Q

Intel® Celeron®Intel® Core i3Intel® Core i5

Product overview
The extended-lifecycle µATX motherboard K3842-Q supports Intel® Core™ i9/i7/i5/i3 processors (12th–14th Gen./Series 2) and Intel® Pentium®/Celeron® processors and is based on the Intel® Q670 chipset. It is qualified for 24/7 continuous operation and provides iAMT-based out-of-band management. TPM 2.0 is integrated for Windows 11 support. Onboard LAN is Intel® i219LM; variant K3842-Q2 optionally provides an additional Intel® i225LM.

Key features

• DDR5-4800 memory support via 4 DIMM sockets, up to 192 GB
• PCI Express Gen5 support for high-bandwidth expansion
• Integrated Intel® UHD Graphics 7xx (dependent on CPU)
• Dual M.2 Key-M SSD sockets and M.2 Key-E WLAN socket onboard
• USB 3.2 Gen 2 / Type-C and 1x COM (RS-232) interfaces

Benefits

• Extended product lifecycle and controlled release management
• Designed for continuous 24/7 operation in industrial environments
• Onboard security with TPM 2.0 for platform integrity
• Out-of-band management capabilities via iAMT
• Flexible storage and expansion options to support varied deployments

Technical data
Processor: Intel® Core™ (12th/13th/14th Gen./Series 2); Intel® Pentium®/Intel® Celeron®
Chipset: Intel® Q670
Main memory: 4x DDR5-4800 DIMM sockets, up to 192 GB, Dual Channel, non-ECC
Graphics: Intel® UHD Graphics 7xx (depends on installed processor)
Display: 4x DPP V1.4a up to 8K

Technical specifications

• Form factor: µATX
• Processor support: Intel® Core™ i9/i7/i5/i3 (12th–14th Gen./Series 2); Intel® Pentium®/Celeron®
• Chipset: Intel® Q670
• Memory: 4x DDR5-4800 DIMM, up to 192 GB, Dual Channel, non-ECC
• Graphics: Intel® UHD Graphics 7xx
• Display outputs: 4x DPP V1.4a, up to 8K
• Storage: Dual M.2 Key-M SSD sockets onboard
• Wireless: M.2 Key-E socket for WLAN
• Expansion: PCI Express Gen5 support
• USB: USB 3.2 Gen 2 / Type-C
• Serial: 1x COM (RS-232)
• LAN: Intel® i219LM onboard; K3842-Q2 optionally offers Intel® i225LM
• Security: TPM 2.0 onboard (Windows 11 support)
• Management: iAMT-based out-of-band management
• Intended use: 24/7 continuous operation
