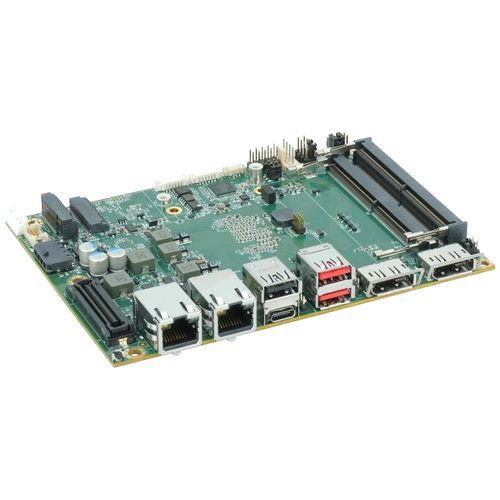

3.5" SubCompact single-board computer 3.5"-SBC-P100AMD Ryzen™AMD Ryzen™ EmbeddedM.2
Add to favorites
Compare this product
Characteristics
- Form factor
- 3.5" SubCompact
- Processor
- AMD Ryzen™ Embedded, AMD Ryzen™
- Extension slot
- M.2
- Connectivity
- LVDS, 2.5 GbE, USB Type-C, CAN Bus, DisplayPort, eDP
- Applications
- for industrial automation
- Memory
- DDR5-SODIMM, DDR5 SDRAM
- Other characteristics
- industrial, embedded, multiple display, dual Ethernet, Edge AI
- Processor frequency
Max.: 8 GHz
Min.: 0 GHz
- Memory size
Max.: 128 GB
Min.: 0 GB
Description
Product overview
3.5"-SBC-P100 is a 3.5-inch single-board computer powered by AMD Ryzen™ AI Embedded P100 Series processors with integrated Radeon™ RDNA™ 3.5 graphics and XDNA™ 2 NPU. The board is designed for industrial embedded applications requiring local AI inference, multiple displays and deterministic network communications.
Key features
Technical data
Processor options: AMD Ryzen™ AI Embedded P164 / P164i (8 cores), P132 / P132i (6 cores), P121 / P121i (4 cores) with configurable TDP ranges (15 W ← 28 W → 54 W)
Graphics: Integrated AMD Radeon™ RDNA™ 3.5 iGPU (frequency per SKU)
AI acceleration: AMD XDNA™ 2 NPU (TOPS varies by SKU)
Memory: 2x DDR5-5600 SO-DIMM, up to 128 GB, Sideband ECC support
Display: 1x eDP (1920 x 1200 @ 60 Hz) or LVDS (24-bit, 2-ch, 1920 x 1200 @ 60 Hz) switchable by BIOS; 3x DisplayPort (2x full-size DP rear, 1x DP over USB-C rear); up to quadruple displays
Networking and fieldbuses: 2x 2.5 GbE (TSN), 2x CAN FD
Security and ruggedness: dTPM 2.0 support, industrial operating temperature range, wide voltage input for embedded use cases
Specifications
3.5"-SBC-P100 is a 3.5-inch single-board computer powered by AMD Ryzen™ AI Embedded P100 Series processors with integrated Radeon™ RDNA™ 3.5 graphics and XDNA™ 2 NPU. The board is designed for industrial embedded applications requiring local AI inference, multiple displays and deterministic network communications.
Key features
- AMD Ryzen™ AI Embedded P100 series processors
- Integrated XDNA™ 2 NPU for on-device AI acceleration (TOPS varies by SKU)
- 2x 2.5 GbE with TSN support and dTPM 2.0 security
- 2x CAN FD buses integrated for fieldbus connectivity
- Expansion via board-to-board connector, board-to-wire connector and M.2 sockets
- Supports up to 2x DDR5-5600 SO-DIMM (up to 128 GB, Sideband ECC)
- Quad-display support: eDP/LVDS selectable, 3x DisplayPort (including DP over USB-C)
Technical data
Processor options: AMD Ryzen™ AI Embedded P164 / P164i (8 cores), P132 / P132i (6 cores), P121 / P121i (4 cores) with configurable TDP ranges (15 W ← 28 W → 54 W)
Graphics: Integrated AMD Radeon™ RDNA™ 3.5 iGPU (frequency per SKU)
AI acceleration: AMD XDNA™ 2 NPU (TOPS varies by SKU)
Memory: 2x DDR5-5600 SO-DIMM, up to 128 GB, Sideband ECC support
Display: 1x eDP (1920 x 1200 @ 60 Hz) or LVDS (24-bit, 2-ch, 1920 x 1200 @ 60 Hz) switchable by BIOS; 3x DisplayPort (2x full-size DP rear, 1x DP over USB-C rear); up to quadruple displays
Networking and fieldbuses: 2x 2.5 GbE (TSN), 2x CAN FD
Security and ruggedness: dTPM 2.0 support, industrial operating temperature range, wide voltage input for embedded use cases
Specifications
- Form factor: 3.5" SBC
- Processor families: P164 / P164i / P132 / P132i / P121 / P121i
- Graphics: AMD Radeon™ RDNA™ 3.5
- NPU: AMD XDNA™ 2
- Memory: 2x DDR5-5600 SO-DIMM, up to 128 GB
- LAN: 2x 2.5 GbE with TSN
- Fieldbus: 2x CAN FD
- Security: dTPM 2.0
- Expansion: board-to-board connector, board-to-wire connector, M.2 sockets
- Display outputs: eDP/LVDS, 3x DP (including DP over USB-C)
