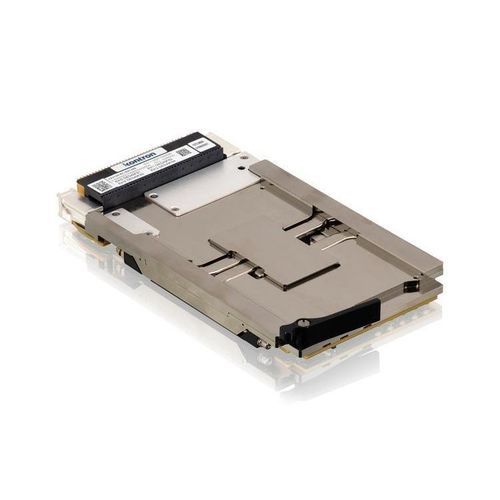

VPX computer-on-module VX3124 series

NXPArm® Cortex®-A72 Dual-coreARM

Rugged, high-performance VPX computing for embedded defense, aerospace and transportation systems. The VX3124 delivers powerful multicore Arm processing in a compact 3U VPX format, optimized for long-life programs in harsh environments. Based on the NXP LX2160A with 16 Arm Cortex-A72 cores, it combines compute density, secure architecture, and high-speed I/O. With its compact VPX design and robust Arm-based processing, it gives system designers unmatched flexibility to scale performance without compromising SWaP or reliability. With soldered ECC DDR4, non-volatile storage, and secure boot architecture, the VX3124 is ideal for resilient, real-time embedded systems in rugged and long-life programs. Typical Applications: - Mission computing and ISR systems - Secure tactical communication nodes - AI edge processing and sensor fusion - Modular embedded platforms in land, sea, air environments Specifications: - NXP QorIQ Layerscape LX2160A System-on-Chip (SoC) - PCIe Gen3 and dual 10GBASE-KR for ultra-high I/O bandwidth - TrustZone for onboard application and data protection - Low-power envelope (<30W) for efficient thermal and mobile deployment - 10+ years lifecycle support for long-term program stability Technical Specifications / Features: - Form Factor: 3U VPX - Processor: 16-core Arm Cortex-A72 (NXP LX2160A) - ECC DDR4 memory (soldered) - Non-volatile storage - Secure boot architecture - Ultra-high I/O bandwidth: PCIe Gen3, dual 10GBASE-KR - TrustZone security - Low power consumption (<30W) - Designed for harsh environments - Long-term lifecycle support (10+ years)
