3U power supply VPX360

DC/DCmultiple-outputSMPS

Overview

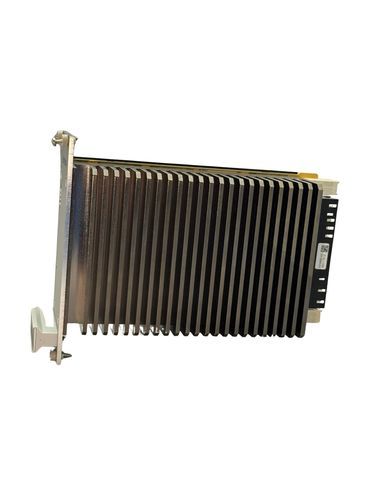

The Kontron VPX360 Air-cooled is a commercial off-the-shelf VPX power supply designed to ANSI/VITA 62.0 for integration into standard VITA 46.0 VPX systems. It delivers up to 600 W in a compact 3U form factor, using next-generation power conversion for high efficiency and dense power delivery.

Product information
Separate versions support nominal 28 V DC or 48 V DC input systems, with a wide operating input range from 12 V DC to 68 V DC. The VPX360 provides multiple main and auxiliary output voltages, programmable power sequencing, comprehensive protection functions and onboard monitoring via I²C, USB-C and optional IPMI. The electronics are conformal-coated and the unit is engineered to meet VITA and MIL standards relevant to embedded and rugged platforms. Compliance testing is pending where indicated in preliminary documentation.

Highlights

• Up to 600 W output power
• Compact 3U VPX conduction-cooled air-cooled form factor, 10 HP pitch
• Versions for 28 V DC or 48 V DC nominal input; 12–68 V DC operating range
• I²C, USB-C and optional IPMI (VITA 46.11) for monitoring and control
• Designed to ANSI/VITA 62.0 and VITA 46.0; engineered for MIL-STD compatibility

Technical data (table)
Mechanical: Form factor: 3U VPX conduction-cooled compliant card (air-cooled); pitch: 10 HP / 2.0 in; dimensions: 122.40 × 171.04 × 50.46 mm; weight: 1.2 kg (2.6 lb). Input Voltage: Nominal 28 V DC or 48 V DC depending on version and keying; operating range 12–68 V DC; minimum turn-on 12 V DC; minimum turn-off 8 V DC; maximum continuous 68 V DC; maximum peak ±250 V for <1 ms. Power & Efficiency: Up to 600 W output; reverse-polarity and input-overvoltage protection; automatic restart behavior for extended overvoltage. Protection Features: Overvoltage, undervoltage, overcurrent, overtemperature, reverse-polarity and input-overvoltage protection; hardware current limiting; internal PCB temperature threshold 125 °C with outputs disabled above threshold; isolation: 500 V input-to-output / input-to-case-ground / output-to-case-ground; case-ground-to-safety-ground resistance <10 mΩ (to be confirmed). Management & Control: Microprocessor monitoring of input status, six outputs, currents and temperatures; interfaces: I²C bus, USB-C for communication/firmware, optional IPMI (VITA 46.11); control/status signals include ENABLE, INHIBIT, FAIL, SYSRESET, voltage sense, current sharing and geographic addressing.

Technical specifications

• Model: VPX360 Air-cooled
• Brand: Kontron
• Output power: Up to 600 W
• Form factor: 3U VPX CC, air-cooled; pitch: 10 HP / 2.0 in
• Dimensions: 122.40 × 171.04 × 50.46 mm
• Weight: 1.2 kg (2.6 lb)
• Nominal input voltage: 28 V DC or 48 V DC (version dependent)
• Input voltage range: 12–68 V DC
• Minimum turn-on: 12 V DC; minimum turn-off: 8 V DC
• Maximum peak input voltage: ±250 V for <1 ms
• Multiple main and auxiliary outputs; programmable power sequencing
• Protection: overvoltage, undervoltage, overcurrent, overtemperature, reverse-polarity, input-overvoltage; hardware current limiting
• Temperature protection: internal PCB threshold 125 °C
• Isolation: 500 V input-to-output, input-to-case-ground, output-to-case-ground
• Monitoring & control interfaces: I²C, USB-C, optional IPMI (VITA 46.11)
• Designed to meet: ANSI/VITA 62.0 and VITA 46.0; engineered for MIL-STD-461, MIL-STD-704, MIL-STD-1275, MIL-STD-810 (compliance testing pending where indicated)
