Multi-channel communication controller board CP348

CompactPCIserialRS-232

Overview

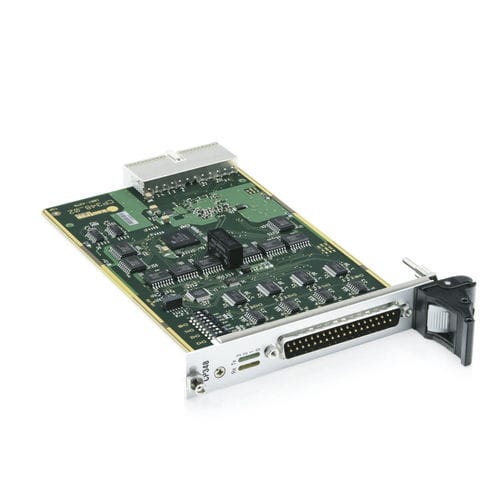

CP348 is a 3U CompactPCI quad serial controller board designed for plug & play applications. It is built around Exar's low-power Quad UART XR17V354 and provides four independent serial channels configurable per channel for RS232, RS422 (full duplex) or RS485 (half duplex). Standard and extended temperature versions are available.

Highlights

• Exar XR17V354 Quad UART, 16550 UART compatible
• Per-channel configurable RS232, RS422 (full duplex), RS485 (half duplex)
• 2 kV isolation between I/O and system
• Frontpanel 37-pin DSUB connector; DSUB37 to 4× DSUB9 adapter cable available
• Connectors and API compatible with CP347 (driver update required)
• OS support: Windows 10, Linux, VxWorks; other OS on request

Product information
CP348 implements four independently controlled serial channels and is 16550 UART compatible. Each channel can be configured individually for RS232, RS422 or RS485 operation. The board uses a 37-pin DSUB frontpanel connector and includes 2 kV isolation between I/O and the host system. A DSUB37 to 4× DSUB9 adapter cable is offered as an accessory. CP348 maintains connector and API compatibility with CP347; migration requires a driver update.

Technical data
Controller: Quad UART XR17V354
Characteristics: 16550 UART compatible
Channels: 4 independently controlled
Function: RS232, RS422, RS485 (per channel configurable)
Frontpanel: 37-pin DSUB connector
Isolation: 2 kV between I/O and system
OS support: Windows 10, Linux, VxWorks; other OS on request
Accessories: DSUB37 to 4× DSUB9 adapter cable
Availability: Standard and extended temperature versions

Characteristics / specifications

• Controller: Exar XR17V354 (Quad UART)
• UART compatibility: 16550 compatible
• Number of channels: 4 independent serial channels
• Supported interfaces: RS232; RS422 (full duplex); RS485 (half duplex) — configurable per channel
• Front panel connector: 37-pin DSUB (DSUB37)
• Isolation: 2 kV between I/O and system
• OS support: Windows 10, Linux, VxWorks; other OS on request
• Compatibility: Connectors and API compatible with CP347 (driver update required)
• Accessory: DSUB37 to 4× DSUB9 adapter cable available
• Variants: Standard and extended temperature versions
