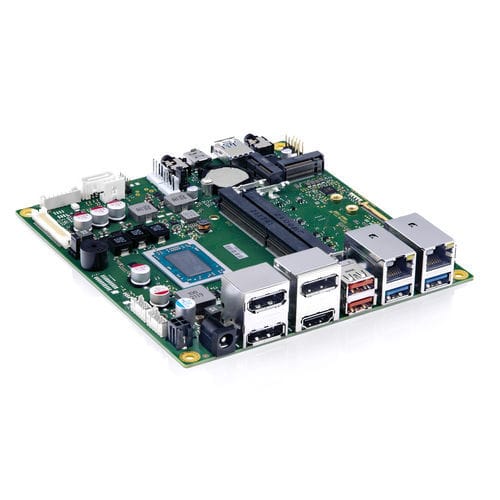

Mini-ITX motherboard D3714 series

mSTXembeddedAMD Ryzen™

Industrial Motherboard supporting the AMD Ryzen™ Embedded V1000/R1000 Series SoCAMD Radeon™ Vega Graphics (within SoC)Up to 3x DisplayPort V1.4 plus HDMI V2.0bDual Channel LVDS (24 Bit) and eDP V1.3 (4k) onboardDesigned for Fanless OperationM.2 Key-M (SSD) and Key-E (WLAN/BT) supportedThe industrial motherboard D3714-V/R mSTX supports the AMD Ryzen™ Embedded V1000 and R1000 series processors with integrated AMD Radeon™ Vega Graphics and can be used in applications with high graphical requirements like casino gaming, medical displays, thin clients and ultra small industrial PCs. It is equipped with up to three DisplayPorts, one HDMI Port, one embedded DisplayPort and one Dual-Channel LVDS (24bit) and powers up to four independent displays in 4K resolution. Depending on the requirements for (graphical) performance, there are 3 motherboard versions available.Looking for a mini-ITX motherboard that supports the same AMD RYZEN™ Embedded V1000/R1000 processors? Discover the D3713-V/R mITX sibling now!Benefits of Kontron motherboards:Highest quality through German engineering and productionStrict lifecycle management and reliable product maintenanceComprehensive feature and tool setExcellent technical supportBeneficial total-cost-of-ownershipFeaturesProcessor: AMD Embedded V1605B SoC, AMD Embedded R1102G SoC, AMD Embedded R1305G SoCChipset: SoCMain Memory: 2x DDR4 2400 SDRAM up to 32 GbyteGraphics Controller: Integrated AMD Radeon™ Vega GraphicsDisplay: Up to 3x DPP V1.4 incl. DP++ support, 1x HDMI V2.0b, 1x embedded DP (eDP V1.4; supporting 4K resolutions; shared with DPP1), 1x Dual-Channel 24bit LVDS (shared with HDMI)Supported display combinations:D3714-V2: 2x DPP + 1x LVDS + 1x eDP, 3x DPP + 1x LVDS, 2x DPP + 1x HDMI + 1x eDP, 3x DPP + 1x HDMID3714-R2: 1x DPP + 1x LVDS + 1x eDP, 2x DPP + 1x LVDS, 1x DPP + 1x HDMI + 1x eDP, 2x DPP + 1x HDMID3714-R1: 1x LVDS + 1x eDP, 1x DPP + 1x LVDS, 1x HDMI + 1x eDP, 1x DPP + 1x HDMIAudio Controller: Realtek ALC256Audio: 5.1-channel, High Definition Audio CodecEthernet: Intel® i210 & Realtek RTL8111H with 10/100/1000 MBit/sUSB: 2x USB 2.0 (by header), 2x USB 3.2 Gen1 (rear), 2x USB 3.2 Gen2 (rear), 1x USB 3.2 Gen1 (front), 1x USB 3.2 Gen1 (Type C, front)Serial: 1x RS232 (by header); 1x RS232/422/485 (by header)Available I/Os: GPIO (by header)SATA: 1x Serial ATA III 600 Interface (up to 6GBit/s), NCQ, AHCIExpansion: 1x M.2 PCIe x4 (Key-M: 2230/2242/2280), 1x M.2 WLAN/Bluetooth (Key-E: 2230, supports PCIe x1/Gen3 + USB 2.0)Power connector: External/Internal DC-In (DC Jack/4-Pin Micro-Fit)Input Voltage: DC Input 12 V or 19-28 V, max. 5 A/65 W (external DC-In), max. 8 A/100 W (internal DC-In)BIOS: AMI Aptio 5.x (UEFI) BIOSWatchdog: 3 level HW Watchdog (BIOS POST/BIOS Boot/OS)Real Time Clock: IntegratedCooling: D3714-V2: 2x PWM fan (CPU/System); D3714-Rx: 1x PWM fan (CPU)Operating System: MS Windows 10, Linux-64Mechanical Dimensions: Mini-STX: 5.5“ x 5.8“ (140 x 148 mm)Operating Temperature: -10 °C – 60 °CHumidity: 5%-85%Certifications: CE Class-B, FCC-B verified, cTÜVus acc. IEC62368-1Accessories (examples):SMARTCASE™ S511 IPC mini-STX ChassisActive Cooler AMD FP5 35WPassive Cooler AMD 10WActive Cooler with 25WAC Adapter 19V / 3.42A, 65WDrive Power Cable for SATA HDD and SATA slimline DVDCOM Cable short/longWLAN Kit for SMARTCASE™ S511Wall Mount Bracket for SMARTCASE™ S511VESA mount SMARTCASE™ S511DC-In Holder for SMARTCASE™ S511DP 20P M to HDMI AdapterM.2 Dual SATA ModuleTechnical Specifications (summary):Processor: AMD Embedded V1605B, R1102G, R1305G SoCChipset: SoCMain Memory: 2x DDR4 2400 SDRAM up to 32GBGraphics: Integrated AMD Radeon™ VegaDisplay: Up to 4 independent 4K displaysAudio: Realtek ALC256, 5.1-channel HD AudioEthernet: Intel i210 & Realtek RTL8111HUSB: Multiple USB 2.0/3.2 Gen1/Gen2, Type CSerial: RS232/422/485Expansion: M.2 PCIe x4, M.2 WLAN/BTPower: DC-In 12V or 19-28VBIOS: AMI Aptio 5.x (UEFI)Dimensions: Mini-STX 140 x 148 mmOperating Temp: -10°C to 60°CCertifications: CE, FCC, cTÜVus
