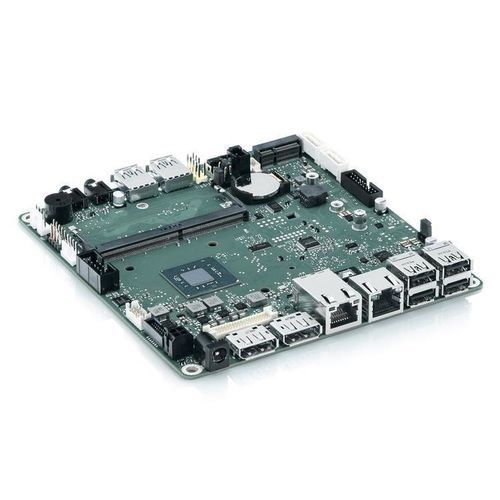

MSTX motherboard D3544-S mSTX

Intel® Celeron®Intel® Pentium® Silver J5005Intel®

Product overview
The industrial motherboard D3544-S mSTX supports Intel® Celeron® Processors J4005/J4105 and the Intel® Pentium® Silver Processor J5005. In a Mini‑STX form factor it provides high integrated graphics performance with Dual DisplayPort outputs capable of driving up to 4K displays. The board is engineered for continuous 24/7 operation with an extended operating temperature range of 0°C to 60°C and is optimized for low power, fanless applications. It includes onboard M.2 slots for SSD and WLAN, a hardware watchdog and GPIO, and a WideRange DC input for flexible power integration.

Highlights

• Dual DisplayPort V1.2a, LVDS and eDP support
• Onboard M.2 SSD and M.2 WLAN slots
• Hardware watchdog and GPIO
• WideRange DC input (8V–24V)
• Designed for fanless / passive cooling operation

Benefits

• Long‑term availability and lifecycle management for industrial deployments
• Compact Mini‑STX size for space‑constrained systems
• Flexible expansion (storage and wireless) via onboard M.2 sockets
• Reliable operation in extended temperature ranges for continuous use
• Low total cost of ownership through efficient power use and integrated features

Technical data (summary)
Processor: Intel® Celeron® J4005 / J4105 & Intel® Pentium® Silver J5005
Chipset: SoC
Memory: 1x DDR4 2400 SO‑DIMM, up to 16 GB
Graphics: Integrated Intel® UHD Graphics 600/605
Display: 2x DisplayPort V1.2a (up to 4K)

Technical specifications

• Form factor: Mini‑STX (mSTX, 140 x 148 mm)
• Supported processors: Intel® Celeron® J4005, J4105; Intel® Pentium® Silver J5005
• Chipset type: SoC (System on Chip)
• Memory: 1x DDR4 SO‑DIMM 2400, up to 16 GB
• Graphics controller: Integrated Intel® UHD Graphics 600/605
• Display interfaces: 2x DP V1.2a; LVDS and eDP supported
• Storage expansion: M.2 Key B socket (2242/2260/2280), PCIe/SATA
• Wireless expansion: M.2 Key E (2230) for WLAN
• Interfaces: GPIO (8‑bit header), hardware watchdog
• Power input: WideRange DC 8V–24V (external/internal DC‑In)
• Cooling: Designed for fanless / passive cooling (low power)
• Operating conditions: 0°C to 60°C, 5%–85% RH
• Availability: Designed for 24/7 operation
• Variants: D3544‑S1 (J4005 dual‑core), D3544‑S2 (J4105 quad‑core), D3544‑S3 (J5005 quad‑core)
• BIOS: AMI Aptio 5.x (UEFI)
• OS support: Windows 10, Linux‑64
• Certifications: cTÜVus (IEC62368‑1) on request, CE Class B, FCC‑B verified
