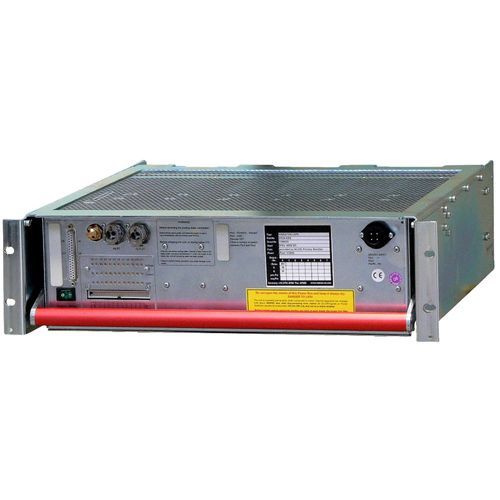

Plug-in power supply MARATON Hazardous HEDCregulatedmultiple-output
Add to favorites
Compare this product
Characteristics
- Mounting / format
- plug-in
- Type
- DC
- Output
- regulated, multiple-output
- Technology
- SMPS
- Protection
- with overload protection, with overcurrent protection, with overheating protection, with current limiting, for hazardous areas
- Certifications
- CE, UL
- Other characteristics
- programmable, low-noise level, modular, computer-controlled, fan cooled, low-voltage, galvanically-isolated, liquid-cooled
- Input voltage
Min.: -72 V
Max.: 2,000 V
- Output voltage
Min.: -1,000,000 V
Max.: 1,000,000 V
- Power
Min.: 0 W
Max.: 3,600 W
Description
Overview
Originally developed for CERN's LHC detectors, the MARATON Hazardous HE is a modular low-voltage DC power system designed for operation in radiation- and magnetically-hostile environments. It separates radiation-sensitive electronics from the power stage, supports programmable multi-channel control via a VME-based RCM, and offers advanced cooling options to maintain ultra-low noise performance for sensitive electronics.
Highlights
Technical data
Compliance: CE EN 60950, EN 50081-1, EN 50082-1/2, UL 1950
Power & Efficiency: Up to 3.6 kW output (water cooled); module efficiency 65–90% depending on voltage
Protection: Over-/undervoltage, overtemperature protection, current limiting; programmable trip-off per global/group/channel
Control & Monitoring: VME-based 12-channel RCM; Ethernet (TCP/IP), USB, SNMP, status LEDs; programmable trip levels and status detection
Design: Modular plug-in architecture; shielded and remotely placed sensitive electronics; recommended water-cooled power bin for highest output stability
Downloads
Datasheet and user manual available in PDF format
Technical specifications
Originally developed for CERN's LHC detectors, the MARATON Hazardous HE is a modular low-voltage DC power system designed for operation in radiation- and magnetically-hostile environments. It separates radiation-sensitive electronics from the power stage, supports programmable multi-channel control via a VME-based RCM, and offers advanced cooling options to maintain ultra-low noise performance for sensitive electronics.
Highlights
- Up to 12 potential-free low-voltage DC outputs
- Maximum output power 3.6 kW (water-cooled)
- Water and air cooling options
- 12-channel VME remote controller (RCM) with Ethernet (TCP/IP), USB and SNMP
- Magnetic field tolerance up to 1200 G (variant dependent)
Technical data
Compliance: CE EN 60950, EN 50081-1, EN 50082-1/2, UL 1950
Power & Efficiency: Up to 3.6 kW output (water cooled); module efficiency 65–90% depending on voltage
Protection: Over-/undervoltage, overtemperature protection, current limiting; programmable trip-off per global/group/channel
Control & Monitoring: VME-based 12-channel RCM; Ethernet (TCP/IP), USB, SNMP, status LEDs; programmable trip levels and status detection
Design: Modular plug-in architecture; shielded and remotely placed sensitive electronics; recommended water-cooled power bin for highest output stability
Downloads
Datasheet and user manual available in PDF format
Technical specifications
- Outputs: Up to 12 potential-free low-voltage DC outputs
- Max output power: 3.6 kW (water cooled)
- Cooling: Water-cooled recommended; air-cooling option available
- Magnetic tolerance: Up to 1200 G depending on variant
- Control & remote monitoring: VME-based 12-channel RCM with Ethernet (TCP/IP), USB and SNMP
- Protection features: Overvoltage/undervoltage, overtemperature, current limiting, programmable trip-off
- Design: Modular plug-in architecture with separation of radiation-sensitive electronics
- Efficiency: Module efficiency 65–90% depending on voltage
- Variants: Multiple module and magnetic-field rated variants
