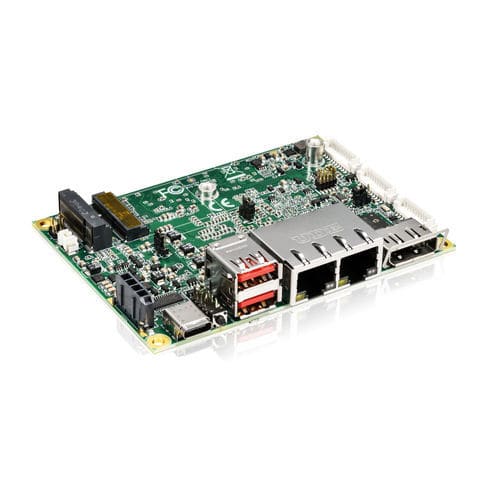

Pico-ITX single-board computer 2.5"-SBC-AML

2.5"INFINEONIntel® Core™ i3-N305

Ideal for ultra-compact or portable IoT edge systems The 2.5"-SBC-AML/ADN is a 2.5" single board computer in Pico-ITX form factor powered by Intel® Atom® x7000RE Series (codenamed Amston Lake), Intel® Atom® x7000E Series, Intel® Core™ i3 N-Series and Intel® N-Series (codenamed Alder Lake N) processors integrated with Intel® UHD Graphics Gen12 as well as next-gen high-speed LPDDR5 memory. Thus, it can deliver upgraded performance, enhanced media transcoding and faster AI inference, making it an ideal baseboard to be integrated into an ultra-compact or portable IoT edge system or an all-in-one solution for a variety of applications, such as smart retail, industrial automation, healthcare, video processing and office automation. - Upgraded processing and graphics performance + faster AI inference capability - Next-gen LPDDR5 memory with up to 4800 MT/s data transfer rate - DP Alt Mode over USB-C support to carry video / audio, data & power over a single port - Wide input voltage range for more application environments - Hardware-based security for data protection and reliable authentication Specifications - Processor: Intel® Atom® x7211RE, x7433RE, x7835RE, Core™ i3-N305, N97, x7213RE, x7211E, x7213E, x7425E, N50, N200 - Main Memory: 4 GByte / 8 GByte / 16 GByte LPDDR5 4800 memory down - Graphics Controller: Intel® UHD Graphics Gen12 - Display: 1x eDP (4096 x 2160 @ 60 Hz), 2x DP (4096 x 2160 @ 60 Hz, 1x Full-size DP on rear, 1x DP USB-C on rear), Triple Display Support - Ethernet Controller: Intel® I226-V/IT - Ethernet: 2x 2.5 GbE LAN (RJ45 on rear), TSN support for models with Atom® processors - USB: 2x USB 3.2 Gen 2 Type A (on rear), 1x USB 3.2 Gen 2 Type C (on rear, w/ DP & PD 5 V / 3 A, except Atom® x7000RE), 1x USB 3.2 Gen 1 Type C (on rear, w/ DP & PD 5 V / 3 A, only Atom® x7000RE), 2x USB 2.0 (by header) - Serial Ports: 2x RS232 (default) / RS232/422/485 (optional) (by header, Tx / Rx only for RS232 signal) - Digital Inputs (DI): 4x DI (by wafer) - Digital Outputs (DO): 4x DO (by wafer) - eMMC: 32 GByte / 64 GByte / 128 GByte eMMC - Expansion: 1x M.2 Key B (Type 2242/3042/3052/2280, w/ PCIe x2 / USB 2.0 / SATA / UIM), 1x M.2 Key E (Type 2230, w/ PCIe x1 / USB 2.0 / CNVi (Atom® x7000RE does not support CNVi)), 1x SIM Card Holder (by Wafer) - Input Voltage: DC 9 V ~ 20 V - Power connector: 1x2-pin pitch 1.25 mm Wafer - BIOS: AMI uEFI BIOS w/ 256 Mb SPI Flash - Watchdog: Programmable WDT to generate system reset event - System Monitoring: Voltages, Temperatures - Real Time Clock: Processor integrated RTC - TPM: TPM 2.0 Support (Infineon SLB 9672) - FP Header: 1x Header for Power Button, Reset Button, Power LED & SATA LED - Form Factor: Pico-ITX (100 mm x 72 mm / 3.94" x 2.83") - Operating Temperature: 0 °C~ 60 °C / 32 °F ~ 140 °F (Standard), -40 °C ~ 85 °C / -40 °F ~ 185 °F (Extreme) - Storage Temperature: -20 °C ~ 80 °C / -4 °F ~ 176 °F (Standard), -55 °C ~ 85 °C / -67 °F ~ 185 °F (Extreme) - Humidity: 0 % ~ 95 % - Compliance: CE Class B, FCC Class B, ICES Class B, UKCA, UR (UL Recognized), CSA
