3U power supply VPX600

AC/DCregulatedmultiple-output

Product information

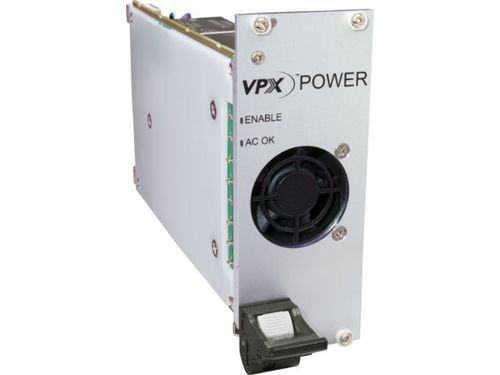

Kontron Hartmann Wiener VPX 3U AC Power Supply D575.00646 is designed for mission-critical, rugged embedded and industrial applications. It delivers up to 600 W total output across six regulated DC channels in a 3U/10HP VPX form factor, with wide AC input and air-cooled thermal management.

Highlights

• 600 W total output with 6 regulated DC channels for multiple load rails
• Wide AC input: 85–264 V AC, 47–63 Hz — compatible with global mains
• Air-cooled design with low-noise internal fan for stable operation
• 3U / 10HP VPX ruggedized form factor compliant with VITA 62
• High efficiency up to 89% and support for parallel operation (redundancy)

Technical data

• Compliance: VITA 62; designed to meet MIL-STD-461, MIL-STD-704, MIL-STD-1275; ruggedized to MIL-STD-810 (with conformal coating)
• Power & efficiency: up to 600 W total output; typical efficiency up to 88–89%
• Input characteristics: 85–264 V AC, 47–63 Hz; inrush current ~6 A typical, 20 A max at 265 Vrms
• Protections: Over-voltage, under-voltage, over-current, over-temperature, reverse polarity protection, input overvoltage protection
• Management & monitoring: Microprocessor control; I²C interface for monitoring voltages, currents, temperature and status; Micro-USB for firmware updates
• Design: No wet/aluminum electrolytic capacitors; front-panel extraction handle; mechanical keying; supports parallel operation with compatible Hartmann PSUs and backplanes

Applications

• Embedded computing and mission systems for defense and industrial markets
• Rugged platforms requiring VITA 62 power solutions and high reliability
• Systems needing monitored power rails and redundancy via parallel operation
