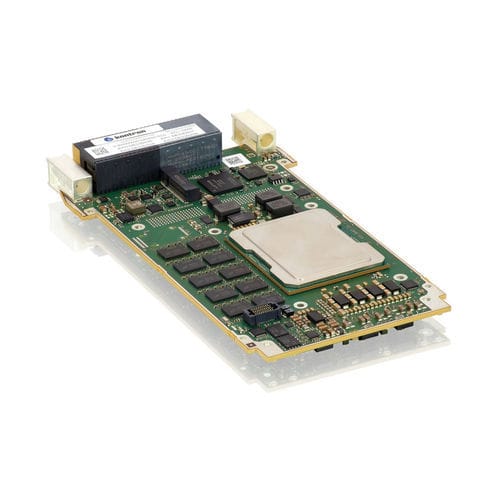

Storage micro server VX307H

networkcalculationblade

Product overview
SOSA-aligned Intel® 10nm x86 microserver 3U VPX blade designed for high-performance microserver and parallel computing nodes. Delivers improved performance over previous Intel® Xeon® D-1500 series while maintaining a conservative power envelope.

Key features

• Intel® Xeon® D-2700 processors with integrated 100G Ethernet
• Up to 20 cores with AVX-512 vector engine
• Security enforced by Hardware Root of Trust
• VITA48 cooling builds with VITA 47 CC3 conduction-cooled option
• Designed in accordance with SOSA™ requirements

Product information
The VX307H leverages a 10nm SoC to target next-generation microserver and parallel compute applications, offering higher core counts and enhanced vector performance while balancing power consumption and thermal constraints typical of VPX blade deployments.

Technical data (excerpt)
Processor: Intel® Xeon® D-2775TE (16 cores, 25M cache, up to 3.10 GHz, 100W TDP) or Intel® Xeon® D-2896TER (20 cores, 30M cache, up to 3.20 GHz, 110W TDP)
Cache: 25 MByte or 30 MByte
DRAM: Up to 64 GB dual-channel DDR4 SDRAM at 2400 MT/s, ECC, soldered
Expansion: Optional XMC slot (VITA42/VITA61, AFT variant)
Backplanes: Supported slot/module profiles: SLT3-PAY-1F1U1S1S1U1U2F1H-14.6.11-0; SLT3-PAY-1F1U1S1S1U1U4F1J-14.6.13-0; MOD3-PAY-1F1U1S1S1U1U2F1H-16.6.11-11; MOD3p-PAY-1F1U1S1S1U1U4F1J-16.6.13-1

Characteristics / technical specifications

• Model: VX307H
• Architecture: SOSA-aligned 3U VPX microserver, Intel® 10nm x86 SoC
• Processor options: Intel® Xeon® D-2775TE (16 cores) or Intel® Xeon® D-2896TER (20 cores)
• Max cores: Up to 20 cores with AVX-512
• Network: Integrated 100G Ethernet
• Memory: Up to 64 GB DDR4 (dual channel, 2400 MT/s, ECC, soldered)
• Storage: 320 GB NVMe 1.4 (M.2) for boot
• I/O planes: Data plane single 40/100GbE or dual 40/10GbE; Expansion plane x8/x16 PCIe Gen4; Control plane 1/10GbE
• Interfaces: Dual SMB/IPMB, JTAG, power supply interfaces
• Cooling: VITA47 CC3 conduction-cooled (-40°C to +70°C) or VITA48.8 airflow-through FC-2 (-40°C to +55°C)
• Security & compliance: Designed to SOSA™ requirements; Hardware Root of Trust enforced
• Front panel: No front panel
