PCIe CPU board PCIe-PoE312M
other Intel®rugged

PCIe CPU board
PCIe CPU board
Add to favorites
Compare this product


Characteristics

Bus standard
PCIe
Processor
other Intel®
Other characteristics
rugged

Description

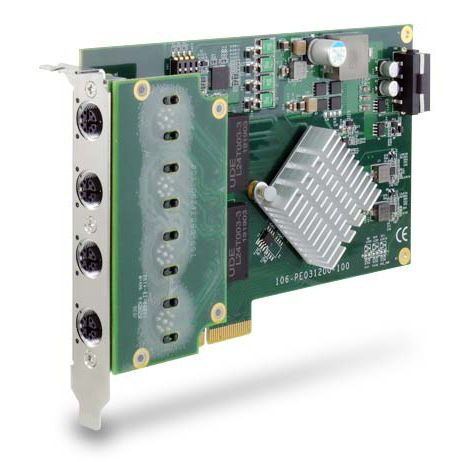

4-port Server-grade Gigabit 802.3at PoE+ Card with M12 x-coded Connectors Intel® I350 server-grade Gigabit Ethernet controller Four M12 x-coded connectors with patent-pending housing design x4, Gen2 PCI Express interface offering 2GB/s total bandwidth Compliant with IEEE 802.3at to deliver up to 25.5 W per port Supports 9.5 kB jumbo frame, teaming and IEEE 1588 Per-port PoE+ power on/off control Introducing the world's first PCIe card with M12 x-coded connectors, it features Gigabit Ethernet and PoE+ functionalities. Thanks to Neousys' patent-pending housing design, PCIe-PoE312M's M12 connectors utilizes a CNC-milled aluminum block as its connector housing screw that can withstand more than extra stress on the cable/connector. It offers extremely rugged and reliable cable connection for Ethernet or PoE devices. PCIe-PoE312M has four Gigabit Ethernet ports integrated via server-grade Intel® I350 NIC. It features checksum offloading, segmentation offloading and intelligent interrupt generation/moderation to increase overall Ethernet performance and reduce CPU utilization. It also integrates IEEE 802.3at PoE+ PSE function to deliver up to 25.5W to attached PD devices.
