Intel® 9th/ 8th-Gen Core™ In-vehicle Controller with 4x or 8x PoE+ Ports, Supercapacitor-based Power Backup Module
Supports Intel® 9th/ 8th-Gen Core™ i7/i5/i3 LGA1151 socket-type CPU
4x or 8x 802.3at Gigabit PoE+ ports via M12 or RJ45 connectors
Onboard isolated CAN bus for in-vehicle communication
4-CH isolated DI and 4-CH isolated DO
2x hot-swappable SATA HDD trays, supporting RAID 0/1
2x M.2 B key and 3x full-size mini-PCIe sockets
8~35V wide-range DC input with built-in ignition power control
Patented Supercapacitor-based Uninterruptible Power Backup
E-Mark and EN 50155 certificate

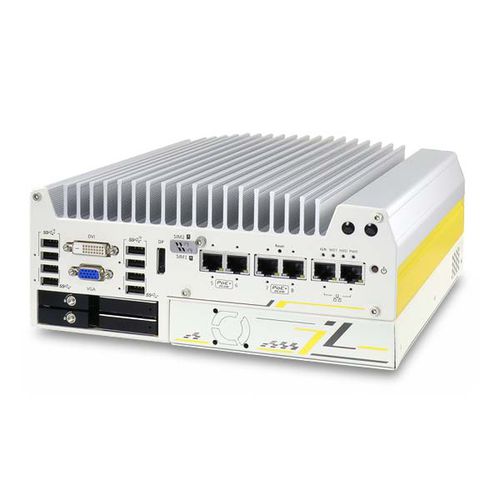

Nuvo-7250VTC is a rugged in-vehicle controller that utilizes Neousys' innovative supercapacitor-based power backup solution. Powered by Intel® 9th/ 8th-Gen Core™ processors with up to 8/ 6-core and 64GB DDR4 memory, it offers over 50% performance increase over previous generations for versatile in-vehicle applications.
Nuvo-7250VTC is equipped with supercapacitor technology to provide 2500 watt-second stored energy to sustain the system to safely shutdown during unforeseen power outages. Nuvo-7250VTC offers a variety of peripherals and connections. It has four or eight 802.3at PoE+ ports to supply 25W power to connected devices such as IP cameras with M12 (x-coded connectors) and connector screw-lock mechanisms on I/Os like Gigabit Ethernet; USB3.0 and USB3.1 to guarantee extreme rugged connectivity in shock/ vibration environments. Internal expansion wise, it has two M.2 and three mini-PCIe sockets with corresponding wireless modules for 3G/ 4G, WIFI, GPS, and CAN module for wireless communication.
