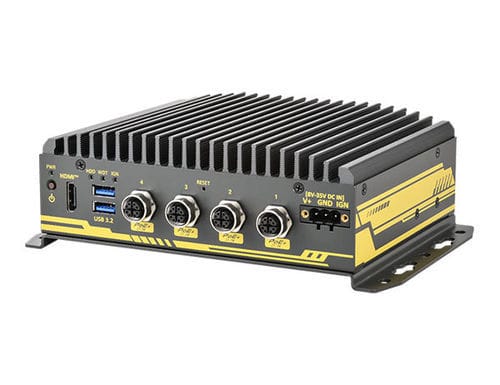

Vehicle-mount computer without display Nuvo-2860VTC

Intel Atom® x7425Eruggedrailway

Overview
Neousys Nuvo-2860VTC is a next-generation ultra-compact in-vehicle computer with E-Mark certification, designed for mobile gateway, mobile surveillance and passenger information systems. It is powered by Intel® Alder Lake Atom® x7425E and supports up to 16 GB DDR5 memory. The platform integrates ignition power control, wide-range DC input, rich I/Os, M.2 and mini-PCIe expansion for wireless modules, isolated CAN ports with SocketCAN support, and multiple PoE+ ports for edge deployments in modern intelligent vehicles.

Key features

• Intel® Alder Lake Atom® x7425E (4 cores / 4 threads, 1.5 / 3.4 GHz, 12W TDP)
• Integrated Intel® UHD Graphics (24 EUs) for light edge AI inference / OpenVINO workloads
• Up to 16 GB DDR5-4800 SDRAM (one SODIMM socket)
• 4x Gigabit Ethernet ports with IEEE 802.3at PoE+ via M12 x-coded connectors
• M.2 B-key (3042/3052) for cellular modules (USB3 + USB2) with dual internal micro-SIM socket
• 1x M.2 M-key (2280) for NVMe SSD (PCIe Gen3 x2)
• 2x full-size mini-PCIe sockets (PCIe + USB2) with internal micro-SIM socket
• 2 isolated CAN 2.0 ports (SocketCAN support in Linux)
• 2x USB 3.2 Gen2 (Type-A, 10 Gbps) with screw-lock
• 1x HDMI 1.4b supporting 3840 x 2160 @30Hz
• 1x software-programmable RS-232/422/485 (COM1)
• Isolated digital I/O: 2-channel DI and 5-channel DO
• Audio: 3.5 mm jack for mic-in and speaker-out
• 8V to 35V DC input with built-in ignition power control (IGN/GND/V+)
• E-Mark certified and EN 50155 EMC compliant

Specification
System Core:
Processor: Intel® Alder Lake Atom® x7425E (4C/4T, 1.5 / 3.4 GHz, 12W TDP)
Graphics: Integrated Intel® UHD Graphics (24 EUs)
Memory: Up to 16 GB DDR5-4800 SDRAM (one SODIMM socket)
TPM: Supports fTPM 2.0

Panel I/O Interface:
Ethernet Port: 4x Gigabit Ethernet via M12 x-coded connectors (Broadcom BCM5719)
PoE Capability: 4x IEEE 802.3at Gigabit PoE+ PSE ports; total PoE+ power budget: 50W
USB: 2x USB 3.2 Gen2 (10 Gbps) Type-A with screw-lock
Video Port: 1x HDMI 1.4b (3840 x 2160 @30Hz)
Serial Port: 1x software-programmable RS-232/422/485 (COM1)
Isolated DIO: 2-CH isolated DI and 5-CH isolated DO
CAN Bus: 2x CAN 2.0 ports (SocketCAN support in Linux)
Audio: 1x 3.5 mm jack (mic-in and speaker-out)

Storage Interface:
SATA HDD: 1x internal 2.5" HDD/SSD bay
M.2 NVMe: 1x M.2 2280 M-key socket (PCIe Gen3 x2) for NVMe SSD

Expansion Bus:
Mini PCI-E: 2x full-size mini-PCIe sockets (PCIe + USB2) with internal micro-SIM socket
M.2 B-key: 1x M.2 3042/3052 B-key (USB3 + USB2) for cellular modules with dual internal micro-SIM sockets

Power Supply:
DC Input: 1x 3-pin pluggable terminal block for 8V to 35V DC input with built-in ignition power control (IGN/GND/V+)

Mechanical:
Dimensions: 206 mm (W) x 144 mm (D) x 65 mm (H)
Weight: 1.4 kg
Mounting: Wall mount (standard with enclosure)

Environmental:
Operating temperature: -40°C ~ 70°C
Storage temperature: -40°C ~ 85°C
Humidity: 10% ~ 90%, non-condensing
Vibration / Shock: EN 50155:2021 / IEC 61373, Category I, Class B - Body mounted
EMC: E-Mark, EN 50121 (EN 50155 EMC); CE / FCC Class A (EN 55032 & EN 55035)

Accessories / Options (ordering highlights)

• Nuvo-2860VTC-PoE — variant with PoE
• Accessory box kit (AccsyBx-mPCIe-HS-Kit-Nuvo-2860VTC) — SATA bracket, mPCIe heatsink and screws
• PA-120W-OW, PA-60W-OW — AC/DC power adapters
• Various cable kits for COM and CAN wiring and mPCIe ↔ M.2 adapters

Technical specifications

• Model: Nuvo-2860VTC
• CPU: Intel® Alder Lake Atom® x7425E (4C/4T)
• Max memory: 16 GB DDR5-4800 (one SODIMM)
• Ethernet: 4x GbE via M12 x-coded (Broadcom BCM5719)
• PoE+: 4x IEEE 802.3at PSE, total budget 50W
• Storage: 1x internal 2.5" bay; 1x M.2 2280 NVMe (PCIe x2)
• Expansion: 1x M.2 B-key for cellular; 2x full-size mini-PCIe
• I/O: 2x USB3.2 Gen2, COM1 (RS-232/422/485), 2-CH DI, 5-CH DO, audio jack
• CAN: 2x isolated CAN 2.0 ports with SocketCAN support
• Power input: 8V–35V DC with ignition control
• Operating temp: -40°C to 70°C
• Certifications: E-Mark, EN 50121 (EN 50155 EMC); CE / FCC Class A
