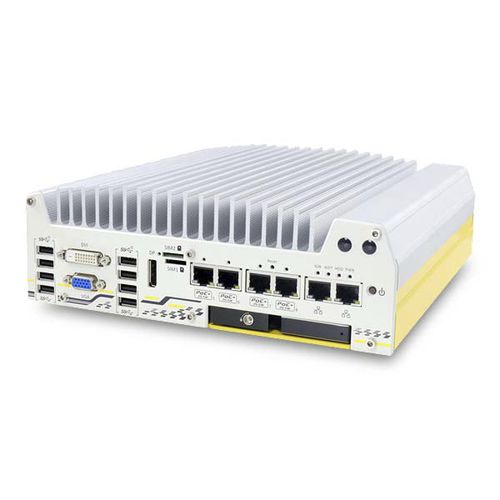

Rugged computer Nuvo-7100VTC series
embedded8th Generation Intel® Core™9th Generation Intel® Core™

rugged computer
rugged computer
rugged computer
Add to favorites
Compare this product


Characteristics

Type
embedded
Processor
8th Generation Intel® Core™, 9th Generation Intel® Core™
Ports
SATA, CAN bus, gigabit Ethernet, RJ45, 4G, WiFi, GPS, 3G
Field
industrial
Other characteristics
fanless, wireless, vehicle-mount, rugged

Description

Intel® 9th/ 8th-Gen Core™ i7/i5/i3 in-vehicle fanless embedded computer in EN50155 certification with 4x M12 PoE+ ports, DIO, CAN bus and RAID Supports Intel® 9th/ 8th-Gen Core™ i7/i5/i3 LGA1151 socket-type CPU 4x or 8x 802.3at Gigabit PoE+ ports via M12 or RJ45 connectors On-board isolated CAN bus for in-vehicle communication 4-CH isolated DI and 4-CH isolated DO 2x SATA ports with one hot-swappable HDD tray, supporting RAID 0/1 2x M.2 B key and 3x full-size mini-PCIe sockets 8~35V wide-range DC input with built-in ignition power control E-Mark and EN 50155 certificate Nuvo-7100VTC is the latest rugged in-vehicle controller featuring purpose-built set and effortless 6-core architecture and 64GB DDR4 memory that gets a significant performance increase over previous generations for versatile in-vehicle applications. Nuvo-7100VTC provides flexibility to support a range of peripherals and connections. It offers four or eight 802.3at PoE+ ports to supply 25W power to connected devices such as IP cameras with M12 (x-coded connectors) and connector screw-lock mechanisms on computer I/Os like Gigabit Ethernet, USB3.0 and USB3.1 to guarantee extreme rugged connectivity in shock/ vibration environments. Wireless connectivity are essential for modern day in-vehicle applications and you can simultaneously utilize two M.2 and three mini-PCIe sockets with corresponding wireless modules for 3G/ 4G, WIFI, GPS, and CAN module for communication. Additionally, there is a 4G cellular module option that is certified to work with renowned US telecommunications company which can save you implementation time and cost.
