Manually operated chilled mirror devices that meet ASTM D1142. Often referred to as "Bureau of Mines Dew Point Testers" these units are used to measure water and hydrocarbon dew points.
|
|
|
|
|
|
Condumax II is a fully self-contained hydrocarbon dew-point analyzer for natural gas processing and transmission applications to monitor this critical gas quality parameter. The Condumax II uses the proven "Dark Spot" hydrocarbon dew-point measurement principle taken from the highly successful Condumax instrument. The Condumax II combines a hydrocarbon dew-point cell and water dew-point measurement in the same compact, lightweight and explosion proof EExd enclosure. The Condumax II requires only mains power to operate and provides a continuous local indication of key measurements as well as analogue and digital outputs for remote monitoring.
The Condumax ll has a fully automatic online analysis feature and uses the fundamental cooled mirror principle to operate. It is CSA certified and ATEX approved to Ex II 2 G EExd IIB + H2 T4 for hazardous areas zones 1 and 2. It has a self-cleaning concept and no purge or cooling gas is needed, making it very easy to maintain. Condumax II is designed to be flexible and easy to connect with other equipment and it has a multi-function vacuum fluorescent display as standard. This display shows all the measurement parameters and allows adjustment of certain control parameters and the view of log data. In addition, Condumax II provides two 4-20mA outputs, configurable from the main unit user interface for any combination of measurement parameters.
|
|
|

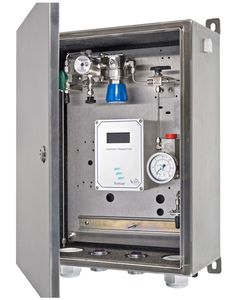

The Promet EExd and Liquidew EExd are complete moisture measurement packages for critical process gas and liquid applications. They are designed with the needs of the customer in mind, providing simplicity of installation, total plant communication integration and high calibration integrity. Each offer single and dual channel moisture measurement with Michell’s exchangeable Ceramic Moisture Sensor technology. The analyser also includes integrated pressure compensation and a bright vacuum fluorescent display with touch screen controls; all within an ATEX and CSA certified flame proof housing, suitable for installation at the process measurement location. A comprehensive range of sample conditioning systems complement Promet EExd and Liquidew EExd, giving the user a complete analyser package that is ready to install and operate.
|
|
|
|
|
|
The Rapidox SF6 Multimeter performs a rapid analysis of the condition of SF6 by measuring the concentration of SF6, moisture and SF6 products in the gas. SF6 in air or nitrogen is continually sampled and a programmable alarm will trigger if the results are outside a programmable range. The Rapidox 3100C is ideal for monitoring the condition gas-insulated equipment and guarding against electrical breakdown.
The Rapidox SF6 Multimeter allows the sampled gas to be recycled and recovered, ensuring that no SF6 is released into the atmosphere. It is supplied with powerful Windows software for easy data-logging and graphing. Just switch on and start measuring...
- Ideal for controlling the SF6 quality in bus bars and circuit breakers
- Continuous gas sampling of SF6, SO2 and moisture
- Ideal for detecting the presence of leaks
- The Rapidox SF6 Multimeter is ideal for checking for the build-up of corrosive decomposition products
- High-precision catharometer for SF6 analysis over the range 0-100%
- Full-scale ceramic dew point sensor for moisture analysis -100°C to +20°C
- Input pressure 0.5 to 14 bar
- Windows data logging software with graphing
|
|
|
|
